IMB-M43-C236Workstation motherboard with Intel C236 chipset and LGA1151 socket
- Manufacturer

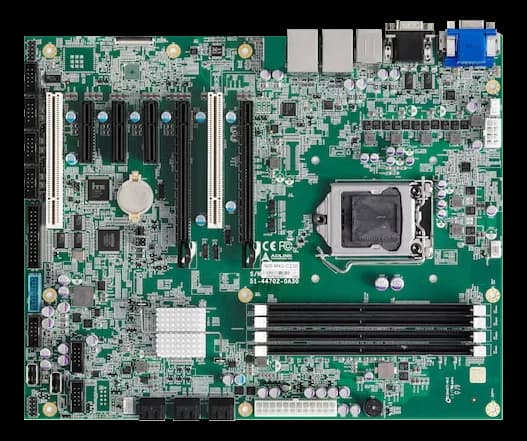

IMB-M43-C236 is a workstation motherboard in ATX form factor: it takes Intel Xeon, Core i9/i7/i5/i3, Pentium and Celeron processors, 6th Gen (Skylake) and 7th Gen (Kaby Lake), with TDP up to 73 W. Memory reaches 64 GB, with error correction.
Expansion offers PCIe x16, PCIe x8, PCIe x4 and PCI slots. Video outputs cover VGA and DisplayPort. Storage covers SATA. Operating range is declared between 0 and 60 °C.
At a glance
- CPU generation: 7th gen (Kaby Lake)
- Processor: Intel® Xeon® Processor E3-1275 v6, 3.8 GHz, 8M Cache, 14nm, 73W TDP, LGA1151 (4C/8T) Intel® Xeon® Processor E3-1275 v5, 3.6 GHz, 8M Cache, 14nm, 80W TDP, LGA1151 (4C/8T) Intel® Xeon® Processor E3-1225 v5, 3.3 GHz, 8M Cache, 14nm, 80W TDP, LGA1151 (4C/4T) Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T)
- CPU TDP: 73–73 W
- CPU cores: 2–4
- CPU threads: 2–700
Technical specifications
| CPU generation | 7th gen (Kaby Lake)6th gen (Skylake) |
|---|---|
| Processor | Intel® Xeon® Processor E3-1275 v6, 3.8 GHz, 8M Cache, 14nm, 73W TDP, LGA1151 (4C/8T) Intel® Xeon® Processor E3-1275 v5, 3.6 GHz, 8M Cache, 14nm, 80W TDP, LGA1151 (4C/8T) Intel® Xeon® Processor E3-1225 v5, 3.3 GHz, 8M Cache, 14nm, 80W TDP, LGA1151 (4C/4T) Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) |
| CPU TDP | 73–73 W |
| CPU cores | 2–4 |
| CPU threads | 2–700 |
| Watchdog | sì |
| CPU class | Intel Celeron/PentiumIntel XeonIntel Core i3/i5/i7/i9 |
| Chipset | C236 |
| Graphics | Integrated Intel®HD Graphics series (based on CPU) |
| CPU socket | LGA1151 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 64–64 GB |
| Memory | Four 288 PIN DDR4 ECC or NON ECC Sockets · Dual channel DDR4 2133/2400 MHz, up to 64 GB (based on CPU) · Dual-channel DDR4 2133/2400 MHz memory up to 64 GB ECC or non-ECC in four DIMM slots |
| Storage | 6x SATA 6.0 Gb/s connectors Software RAID support 0/1/5/10 |
|---|
| Video outputs | 1x VGA connector (rear), resolution up to 1920 x 1200 @ 60 Hz · 2x DP connector (rear), resolution up to 4096 x 2304 @ 60 Hz |
|---|
| Other I/O | 1x LPT pin header · 1x PS/2 keyboard & Mouse connector (rear) |
|---|---|
| USB ports | 6x USB 3.0 connectors (rear) 2x USB 3.0 pin headers 4x USB 2.0 pin headers 2x USB 2.0 (vertical type A connector) |
| Digital I/O | 1x 10-pin/2.54mm GPIO pin header: 4 in and 4 out, one ground pin and one power pin |
| Ethernet ports | LAN1: Intel®I219-LM via RJ45 connector (rear) LAN2: Intel® I210-AT via RJ45 connector (rear) · LAN1 and LAN2 support |
| Serial interfaces | 2x RS-232/422/485 with auto flow control connector (rear) 4x RS-232 pin headers · PS/2 combo, LAN2, VGA, COM1, LAN1, 2x DP, 6x USB3.0, COM2 |
| Form factor | ATX |
|---|
| Expansion | If PEG3 is occupied, PEG1 is PCIex8 Gen3, PEG2 is PCIex4 Gen3, and PEG3 is PCIex4 Gen3 If PEG3 is not occupied and PEG2 is occupied, PEG1 is PCIex8 Gen3, PEG2 is PCIex8 Gen3, and PEG3 is no signal If PEG3 is not occupied and PEG2 is not occupied, PEG1 is PCIex16 Gen3, PEG2 and PEG3 is no signal PCIe1: PCIe x4 Gen3, PCIe2: PCIe x4 Gen3, PCI1: PCI 2.2, PCI2: PCI 2.2 <Physical Slot> PEG1: PCIex16 slot, PCI1: PCI slot, PEG2: PCIex16 slot, PEG3: PCIex4 slot, PCIe1: PCIex4 slot, PCIe2: PCIex4 slot, PCI2: PCI slot |
|---|
| Dimensions | 305 × 244 |
|---|---|
| Other features | CPU voltage +3.3 V voltage CPU temperature System temperature CPU fan speed System fan speed · LAN1 Support |
| Storage temperature | -40–85 °C |
|---|---|
| Operating temperature | 0~60 |
| Certifications | FCCCE |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
