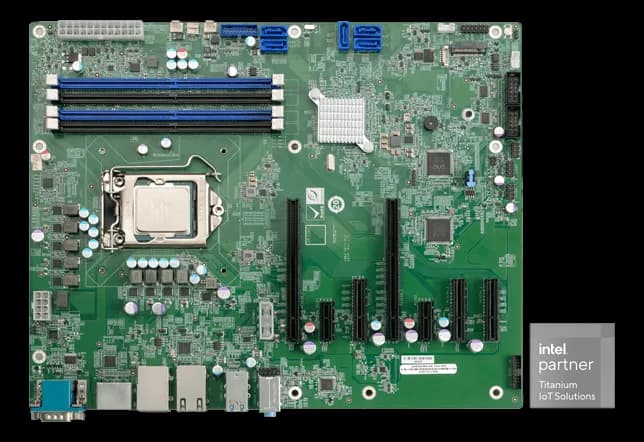

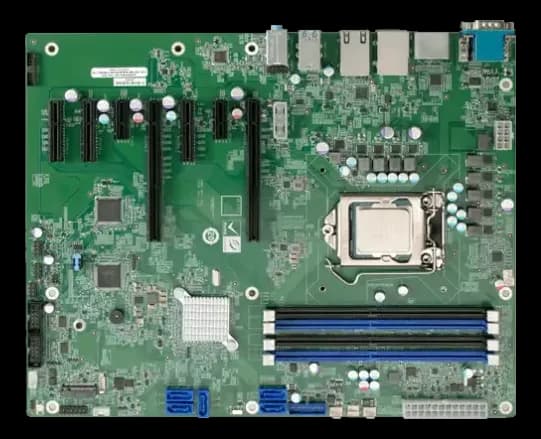

IMBA-Q471LGA1200 industrial ATX motherboard with triple 2.5GbE LAN
- Manufacturer
- Configurations
- 1 available configurations
The board covers Intel Core i9/i7/i5/i3, Pentium and Celeron processors of the 10th and 11th generation; memory runs on four dual-channel DIMMs at 2933 MHz.
The video section drives three independent displays over VGA, DisplayPort and HDMI; storage offers five SATA 6Gb/s ports with RAID 0/1/5/10 and an M.2 M key slot. Expansion covers two PCIe x16 slots with x8 signaling, three open-end PCIe x4 and two PCIe x1.
A 244 × 305 mm form factor, an operating temperature from -10 to 60 °C and CE and FCC compliance complete the datasheet.
At a glance
- CPU socket: LGA1200
- CPU class: Intel Celeron/Pentium
- TPM: TPM 2.0
- CPU generation: 10th gen (Comet Lake)
- Processor: 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Technical specifications
| CPU socket | LGA1200 |
|---|---|
| Chipset | Q470EQ470 |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| TPM | TPM 2.0PTT / fTPM (firmware) |
| BIOS | AMI UEFI BIOS |
| CPU generation | 10th gen (Comet Lake)11th gen (Tiger Lake) |
| Processor | 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors |
| Watchdog | Yes(sec · 1-255) |
| CPU frequency | 2.8 GHz |
| Graphics | Intel® UHD Graphics 630 |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 128 GB |
| Memory | DDR4-2933 |
| Storage | 5 x SATA : 6Gb/s (RAID 0/1/5/10 supported) |
|---|
| Video outputs | 1 x HDMI™ : up to 4096 x 2304 @ 30 Hz1 x Display Port : up to 4096 x 2304 @ 60 Hz |
|---|
| USB ports | 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type-A)2 x USB 3.2 Gen 1 (5Gb/s) (Type-A)2 x USB 3.2 Gen 2 (10Gb/s) (Type-A)2 x USB 3.2 Gen1 (2x10 pin, P=2.0)2 x External USB 2.0 : Type-A2 x External USB 3.2 Gen1x1 : 5Gb/s (Type-A)6 x Internal USB 2.0 : 2x4 pin, p=2.542 x Internal USB 3.2 Gen1x1 : 2x10 pin, p=2.0 |
|---|---|
| Audio | (2x7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button)1 x Line in1 x Line out1 x Mic(mic-in)Audio : 2x5 pin, p=2.54(mic-in)1 x Front(mic-in) |
| Digital I/O | 1 x DIO : 12-bit digital I/O (2x7 pin, p=2.0)(bidir) |
| Ethernet ports | 2 x USB 3.2 Gen 2 (10Gb/s) (Type-A) |
| Serial interfaces | 1 x External RS-232 : DB-91 x Internal RS-422/485 : 1x4 pin, p=2.0 |
| Other I/O | 1 x SMBus (1x4 pin) |
| Form factor | ATX |
|---|
| Expansion | 3 x PCIe Gen3 x4 open-end 2 x PCIe Gen3 x1 M.2 M key 2240/2280 ( PCIe x2 &SATA signal)M.2 M key 2240/2280 ( PCIe x2 &SATA signal)2 x PCIe Gen3 x1(PCIe-x1)3 x PCIe Gen3 x4 open-end(PCIe-x4)2 x PCIe Gen3 x16 (x8 signal)(PCIe-x16) |
|---|
| Weight | 1.2 kg(net) |
|---|---|
| Dimensions | 244 × 305 mm |
| Storage temperature | -30–70 °C |
|---|---|
| Operating temperature | -10–60 °C |
| Certifications | FCCCE |
|---|
| Ethernet ports | 2.5 GbE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
