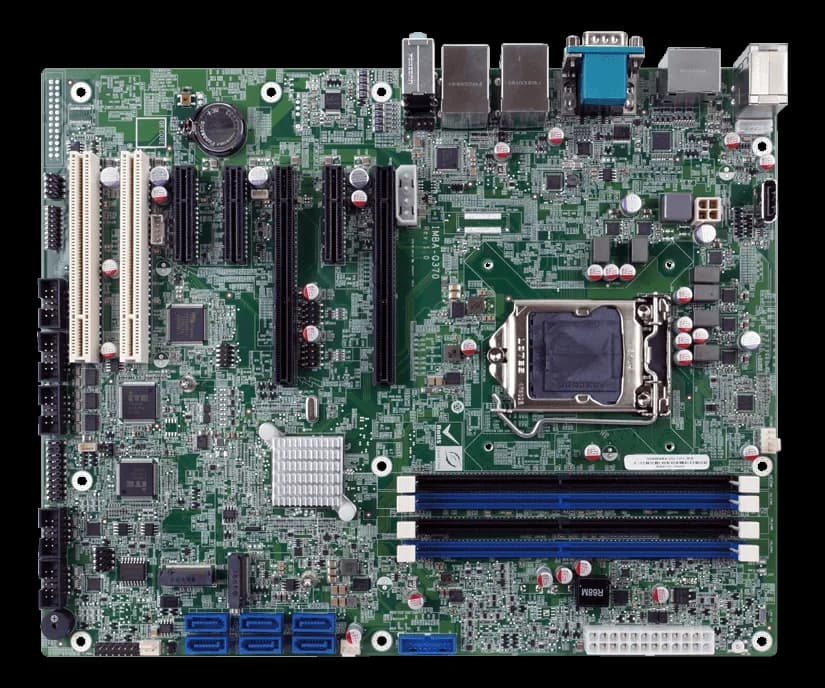

IMBA-Q370Industrial ATX motherboard with LGA1151 socket and Intel Q370 chipset
- Manufacturer
- Configurations
- 1 available configurations
The socket hosts Intel Core i9/i7/i5/i3, Pentium and Celeron processors; memory runs on four dual-channel DDR4 DIMMs at 2666/2400 MHz up to 64 GB.
Video outputs include VGA, HDMI and two DisplayPort; networking pairs an Intel I219LM controller with AMT support with an Intel I211AT. Storage relies on six SATA 6Gb/s ports with RAID 0/1/5/10, while expansion provides two PCIe x8 slots, three PCIe x4, two PCI and two M.2 slots with A key and M key.
The board measures 244 × 305 mm and works from -20 to 60 °C, with CE and FCC compliance and declared support for Windows 10 and Linux distributions such as Ubuntu, SUSE and Red Hat.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Core i3/i5/i7/i9
- TPM: Header (provision)
- CPU generation: 9th gen (Coffee Lake-R)
- Processor: LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | Q370 |
| CPU class | Intel Core i3/i5/i7/i9Intel Celeron/Pentium |
| TPM | Header (provision) |
| BIOS | AMI UEFI BIOS ● LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor |
| CPU generation | 9th gen (Coffee Lake-R)8th gen (Coffee Lake) |
| Processor | LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor |
| Watchdog | Yes(sec · 1-255) |
| Graphics | Gen9 graphics Intel® HD 510~530 |
| RAM type | DDR4 |
|---|---|
| Memory | Dual-channel DDR4 2666MHz |
| Storage | 6 x SATA :6Gb/s(RAID 0/1/5/10 supported) |
|---|
| Video outputs | 1 X internal Displayport (up to 4096x2304@60Hz)2 x Display Port:1 X DP++ (up to 4096x2304@60Hz)1 x HDMI™ :up to 4096x2304@30Hz |
|---|
| USB ports | 4 x External USB 3.2 Gen1x12 x Internal USB 3.2 Gen1x1:2x10 pin, p=2.02 x External USB 2.04 x Internal USB 2.0 :2x4 pin, p=2.54 |
|---|---|
| Audio | Realtek ALC662 HD codec1 x Line in :on rear IO1 x Line out :on rear IO1 x Mic :on rear IO(mic-in) |
| Digital I/O | 1 x DIO :8-bit digital I/O (2x5 pin)(bidir) |
| Ethernet ports | Intel® I210AT PCIe controller |
| Serial interfaces | 2 x Internal RS-232/422/485:2x5 pin, p=2.54 |
| Other I/O | 2 x PS/2 :1 X 1x6 pin |
| Form factor | ATX |
|---|
| Expansion | 3 x PCIe x42 x PCIe x82 x PCI Slot2 x M.2(NGFF):1 x A key(2230/3030), 1 X M key(PCLe, USB, SATA) |
|---|
| Power consumption | 5.44–102.96 W |
|---|
| Weight | 0.7 kg1.2 kg(net) |
|---|
| Storage temperature | -30–70 °C |
|---|---|
| Operating temperature | -20–60 °C |
| Certifications | FCCCE |
|---|
| Operating systems | LinuxVxWorksWindows |
|---|
| Ethernet ports | 1 GbE10 GbE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
