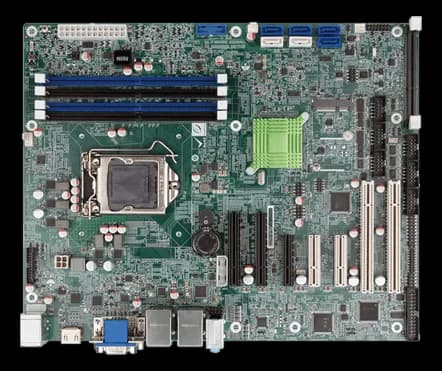

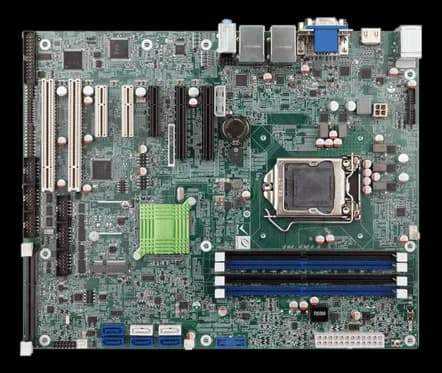

IMBA-Q170-i2Industrial ATX motherboard with Intel Q170 chipset and LGA1151 socket
- Manufacturer
IMBA-Q170-i2 is an industrial ATX motherboard: it takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors, 6th Gen (Skylake) and 7th Gen (Kaby Lake). Memory reaches 64 GB.
Expansion offers PCIe x8, PCIe x4 and PCI slots. Video outputs cover VGA, HDMI, DisplayPort, DVI and LVDS. Storage covers SATA. Operating range is declared between -20 and 60 °C.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Celeron/Pentium
- TPM: Header (provision)
- CPU generation: 6th gen (Skylake)
- Processor: LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | Q170 |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| TPM | Header (provision) |
| BIOS | UEFI BIOS |
| CPU generation | 6th gen (Skylake)7th gen (Kaby Lake) |
| Processor | LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor |
| Watchdog | sì |
| Graphics | Intel® HD Graphics Gen 9 engine with 16 low-power execution units, supports DX11/12, OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0 |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 64–64 GB |
| Memory | Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB · 64GB |
| Storage | 6 x SATA :6Gb/s (RAID 0/1/5/10 supported) |
|---|
| Video outputs | Triple independent display / 1 x VGA (up to 1920x1200@60 Hz) / 1 x DVI-D (up to 1920x1200@60Hz) / 1 x HDMI 2.0 (up to 4096x2160@60Hz) / 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) |
|---|
| USB ports | 2 x USB 2.0 · 4 x USB 3.2 Gen 1 (5Gb/s) · 2 x External USB 2.0 · 4 x External USB 3.2 Gen1x1 · 4 x Internal USB 2.0 :2x4 pin, P=2.0 · 2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0 |
|---|---|
| Audio | Realtek ALC888S HD Audio codec supports 7.1-channel / 3 x Audio jacks (line-out, line-in, mic-in) on rear IO / 1 x Front audio (2x5 pin) |
| Digital I/O | 8-bit digital I/O (2x5 pin) · 1 x DIO :8-bit digital I/O (2x5 pin) |
| Ethernet ports | LAN1: Intel® I219LM with Intel® AMT 11.0 support / LAN2: Intel® I210AT PCIe controller with NCSI support · 2 x LAN LED (1x2 pin) |
| Serial interfaces | 4 x Internal RS-232 :2x5 pin, P=2.54 · 2 x Internal RS-232/422/485 :2x5 pin, p=2.54 |
| Other I/O | 1 x PS/2 :1x6 pin · 1 x LPT :2x13 pin, p=2.54 · 1 x SMBus (1x4 pin) · 1 x I²C (1x4 pin) · 1 x Front panel (2x7 pin, power LED, HDD LED, speaker, power button, reset button) · 1 x iRIS-2400 slot · 1 x CPU smart fan (1x4 pin) · 2 x System smart fan (1x3 pin) · 1 x Chassis intrusion (1x2 pin) |
| Form factor | ATX |
|---|
| Expansion | 1 x Full-size PCIe Mini card slot (support mSATA) / 2 x PCI slot / 2 x PCIe x 8 slot (Gen3) / 3 x PCIe x 4 slot (Gen3) |
|---|
| Power input | ATX/AT power supply · 3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSB@0.22A (Intel® Core™ i7-6700K 4.0GHz CPU with 32 GB (four 4 GB) 2133 MHz DDR4 memory) |
|---|
| Weight | 0.7–0.7 kg |
|---|---|
| Dimensions | 305 × 244 |
| Storage temperature | -30–70 °C |
|---|---|
| Operating temperature | −20~60 |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
