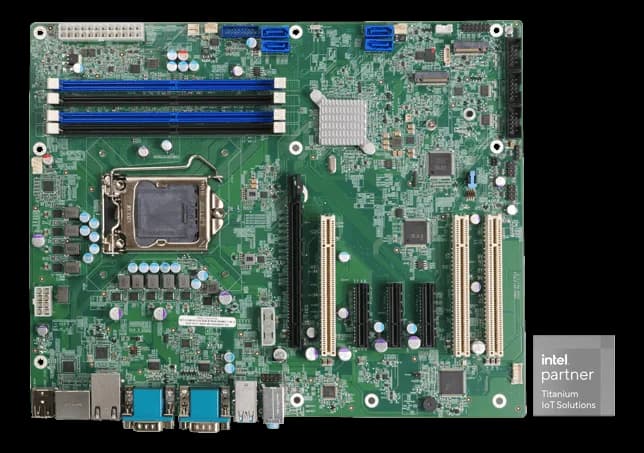

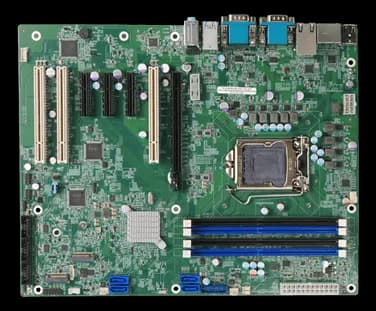

IMBA-Q470Industrial ATX motherboard with LGA1200 socket and Intel Q470 chipset
- Manufacturer
- Configurations
- 1 available configurations
The platform covers Intel Core i9/i7/i5/i3, Pentium and Celeron processors of the 10th and 11th generation, paired with DDR4 memory. The layout is that of a classic 244 × 305 mm ATX board.
The on-board set includes a VGA output up to 1920 × 1080 @60Hz, a PCIe x16 slot and connectors for the CPU fan and for the system fans.
The declared operating range is 0~60 °C, with storage from -30 to 70 °C and humidity from 5 to 95% non-condensing; the board is CE and FCC compliant.
At a glance
- CPU socket: LGA1200
- CPU class: Intel Core i3/i5/i7/i9
- TPM: TPM 2.0
- CPU generation: Apollo Lake
- Processor: LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Technical specifications
| CPU socket | LGA1200 |
|---|---|
| Chipset | Q470Q470E |
| CPU class | Intel Core i3/i5/i7/i9Intel Celeron/Pentium |
| TPM | TPM 2.0PTT / fTPM (firmware) |
| BIOS | AMI UEFI BIOS |
| CPU generation | Apollo Lake11th gen (Tiger Lake)10th gen (Comet Lake) |
| Processor | LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor |
| Watchdog | Yes(sec · 1-255) |
| CPU TDP | up to 125W W |
| CPU frequency | 2.8 GHz |
| Graphics | Intel® UHD Graphics 630 |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 128 GB |
| Memory | DDR3L up to 1866 MHzFour 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GBDDR4-2933 |
| Storage | 4 x SATA |
|---|
| Video outputs | 1 x Display Port1 x VGA (up to 1920 x 1080@60Hz)1 x DP (up to 4096 x 2304@60Hz)(DisplayPort) |
|---|
| USB ports | 2 x External USB 3.2 Gen2x1 : 10Gb/s（Type-A）2 x USB 3.2 Gen 2 (10Gb/S)2 x External USB 2.0 : Type-A2 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A)5 x Internal USB 2.0 : 2x4 pin, P=2.542 x Internal USB 3.2 Gen1x1 : 2x10 pin, p=2.02 x USB 3.2 Gen 1 (2x10 pin, P=2.0) (5Gb/s) |
|---|---|
| Audio | 1 x Line in1 x Line out(2x7 pin, power LED, HDD LED, speaker, power button, reset button)Realtek ALC888S HD Audio codec |
| Digital I/O | 1 x DIO : 8-bit digital I/O (2x5 pin(bidir) |
| Ethernet ports | 2 x LAN: |
| Serial interfaces | 1 x Internal RS-232/422/485 : 2x5 pin, P=2.54 ,RS-485 support AFC2 x Internal RS-232 : 2x5 pin, P=2.541 x External RS-422/485 : RS-485 support AFC |
| Other I/O | 1 x SMBus (1x4 pin) |
| Form factor | ATX |
|---|
| Expansion | 1 x PCIe x163 x PCI slot1 x M.2 A-key 2230 (PCIe x1 / USB 2.0)3 x PCIe x41 x M.2 2230 A key (PCIe 3.0 x1, USB 2.0) |
|---|
| Power consumption | 4.49–90 W |
|---|
| Weight | 1.2 kg(net) |
|---|---|
| Dimensions | 244 × 305 mm |
| Storage temperature | -30–70 °C |
|---|
| Certifications | FCCCE |
|---|
| Ethernet ports | 2.5 GbE |
|---|
