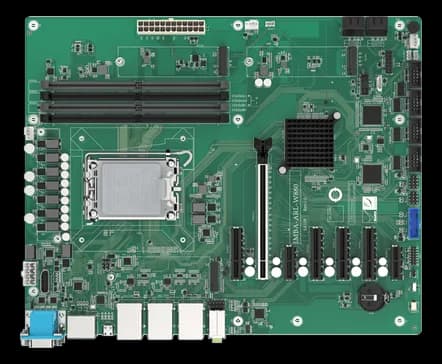

IMBA-ARL-W880Workstation motherboard with Intel W880 chipset and DDR5 ECC up to 192 GB
- Manufacturer
- Configurations
- 1 available configurations
IMBA-ARL-W880 is a workstation motherboard in ATX form factor: it takes Intel Core i9/i7/i5/i3 processors, Core Ultra Serie 2, with TDP up to 125 W. Memory reaches 192 GB, with error correction.
Expansion offers PCIe x16, PCIe x4, PCIe x1 and M.2 slots. Networking reaches 2.5 Gigabit. Storage covers SATA. Operating range is declared between -10 and 60 °C.
At a glance
- CPU generation: Core Ultra Series 2
- Processor: High-Performance Intel® Core™ Ultra Processors (Series 2) (up to 125W TDP CPU)
- CPU TDP: 125 W
- TPM: TPM 2.0
- CPU cores: 2–2
Technical specifications
| BIOS | AMI UEFI BIOS |
|---|---|
| CPU generation | Core Ultra Series 2 |
| Processor | High-Performance Intel® Core™ Ultra Processors (Series 2) (up to 125W TDP CPU) |
| CPU TDP | 125 W |
| TPM | TPM 2.0 |
| CPU cores | 2–2 |
| Watchdog | sì |
| CPU class | Intel Core i3/i5/i7/i9 |
| Chipset | W880 |
| Graphics | New Intel® Xe Graphics architecture with SRIOV, Genlock |
| RAM type | DDR5 |
|---|---|
| ECC support | sì |
| Maximum RAM | 192–192 GB |
| Memory | Four 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered Clocked Unbuffered DIMM(UDIMM&CUDIMM) supported up to 192GB, ECC&non-ECC support (1DIMM per channel 1R/2R 5600MHz, 2DIMM per channel 1R/2R 4400MHz) |
| Storage | 4 x SATA : 4 x SATA 6Gb/s (RAID 0/1/5/10 supported) |
|---|
| Video outputs | Quad independent display / 1 x DP1.4 (up to 4K@60Hz) / 1 x HDMI1.4 (up to 4K@30Hz) / 1 x USB4 (up to 4K@60Hz) / 1 x DP1.4 (up to 4K@60Hz) internal |
|---|
| Other I/O | 4 x SATA 6Gb/s (RAID 0/1/5/10 supported) · 1 x SMBus (1x4 pin) · 1 x I2C (1x4 pin) · 1 x Front Panel (2 x 7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button) · 1 x CPU fan connector (1x4 pin) · 2 x System fan connector (1x4 pin) · 1 x Chassis intrusion (1x2 pin) |
|---|---|
| USB ports | 6 x USB 3.2 Gen2 (Type-A) (10Gb/s) · 4 x USB 2.0 (2x4 pin, P=2.54) · 2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer ) (5Gb/s) |
| Digital I/O | 1 x 12-bit digital I/O (2x7 pin) |
| Audio | Realtek ALC888S HD codec / 2 x Audio Jack ( Line-out, Mic-in) on rear IO / 1 x Analog audio (2x5 pin) |
| Ethernet ports | LAN1: Intel® I226-LM 2.5GbE controller / LAN2: Intel® I226V 2.5GbE controller · 2 x LAN LED (1x2 pin) |
| Serial interfaces | 2 x RS-232/422/485 (RS-485 support AFC) · 4 x RS-232 (2x5 pin, P=2.54) |
| Form factor | ATX |
|---|
| Expansion | 1 x PCIe x16 with Signal Gen5 / 4 x PCIe x4 open-end Gen4 / 2 x PCIe x1 Gen4 / 1 x M.2 M Key (2280, PCIe x4 ) NVMe support / 1 x M.2 M Key (2280, PCIe x2 ) NVMe support / 1 x M.2 B key for IRIS2-2600 |
|---|
| Power input | ATX/AT power supply / Support AT/ATX mode / ErP/EuP Compliant · 3.3V@4.39A,5V@12.57A, 12V@7.21A, 5Vsb@0.36A (Intel 15th Q4A9 with DDR5 4800MHz U-DIMM 16GB memory) |
|---|
| Weight | 0.7–0.7 kg |
|---|---|
| Dimensions | 305 × 244 |
| Other features | Fintek F81966 · ENE KB9068 |
| Storage temperature | -30–70 °C |
|---|---|
| Operating temperature | −10~60 |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| IMBA-ARL-W880-R10 |
