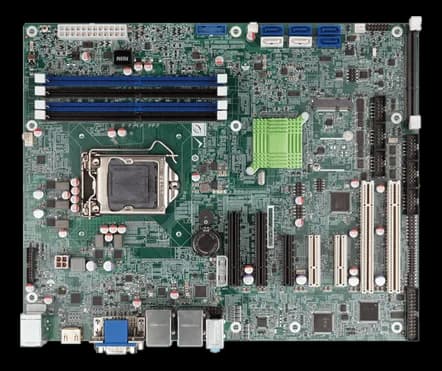

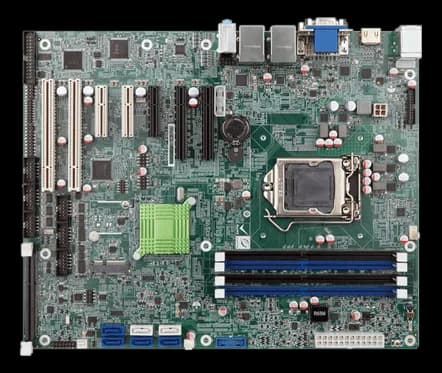

IMBA-C2360-i2Workstation motherboard with Intel C236 chipset and LGA1151 socket
- Manufacturer
IMBA-C2360-i2 is a workstation motherboard in ATX form factor: it takes Intel Xeon, Core i9/i7/i5/i3, Pentium and Celeron processors, 6th Gen (Skylake) and 7th Gen (Kaby Lake). Memory reaches 64 GB, with error correction.
Expansion offers PCIe x8, PCIe x4 and PCI slots. Video outputs cover VGA, HDMI, DisplayPort, DVI and LVDS. Storage covers SATA. Operating range is declared between -20 and 60 °C.
At a glance
- CPU generation: 6th gen (Skylake)
- Processor: LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor
- TPM: Header (provision)
- Watchdog: sì
- CPU class: Intel Xeon
Technical specifications
| BIOS | UEFI BIOS |
|---|---|
| CPU generation | 6th gen (Skylake)7th gen (Kaby Lake) |
| Processor | LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor |
| TPM | Header (provision) |
| Watchdog | sì |
| CPU class | Intel XeonIntel Core i3/i5/i7/i9Intel Celeron/Pentium |
| Chipset | C236 |
| Graphics | Intel® HD Graphics Gen 9 engine with 16 low-power execution units, supports DX11/12, OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0 |
| CPU socket | LGA1151 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 64–64 GB |
| Memory | Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB · 64GB |
| Storage | 6 x SATA :6Gb/s |
|---|
| Video outputs | Triple independent display / 1 x VGA (up to 1920x1200@60Hz) / 1 x DVI-D (up to 1920x1200@60Hz) / 1 x HDMI 2.0 (up to 4096x2160@60Hz) / 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) |
|---|
| Other I/O | 1 x KB/MS · 1 x KB/MS (1x6 pin) · 1 x LPT (2x13 pin, P=2.54) · 6 x SATA 6Gb/s · 1 x SMBus (1x4 pin) · 1 x I²C (1x4 pin) · 1 x Front panel (2x7 pin, power LED, HDD LED, speaker, power button, reset button) · 1 X iRIS-2400 slot · 1 x CPU smart fan (1x4 pin) · 2 x System smart fan (1x3 pin) |
|---|---|
| USB ports | 2 x USB 2.0 · 4 x USB 3.2 Gen 1 (5Gb/s) · 4 x USB 2.0 (2x4 pin, P=2.0) · 2 x USB 3.2 Gen 1 (5Gb/s) (2x10 pin, P=2.0) |
| Digital I/O | 8-bit digital I/O (2x5 pin) |
| Audio | Realtek ALC888S HD Audio codec supports 7.1-channel / 3 x Audio jacks (line-out, line-in, mic-in) on rear IO / 1 x Front audio (2x5 pin) |
| Ethernet ports | LAN1: Intel® I219LM with Intel® AMT 11.0 support / LAN2: Intel® I210AT PCIe controller with NCSI support · 2 x LAN LED (1x2 pin) |
| Serial interfaces | 4 x RS-232 (2x5 pin, P=2.54) · 2 x RS-232/422/485 (2x5 pin, P=2.54) |
| Form factor | ATX |
|---|
| Expansion | 1 x Full-size PCIe Mini card slot (support mSATA) / 2 x PCIe x8 slot (Gen3) / 2 x PCI slot / 3 x PCIe x4 slot (Gen3) |
|---|
| Power input | ATX/AT power supply · 3.3V@1.51A, 5V@3.31A, 12V@9.02A, 5VSB@3.7A (Intel® Xeon® E3-1275 v5 3.60 GHz CPU with 32 GB (four 8GB) 2133 MHz DDR4 memory) |
|---|
| Weight | 0.7–0.7 kg |
|---|---|
| Dimensions | 305 × 244 |
| Storage temperature | -30–70 °C |
|---|---|
| Operating temperature | −20~60 |
| Certifications | FCCCE |
|---|
