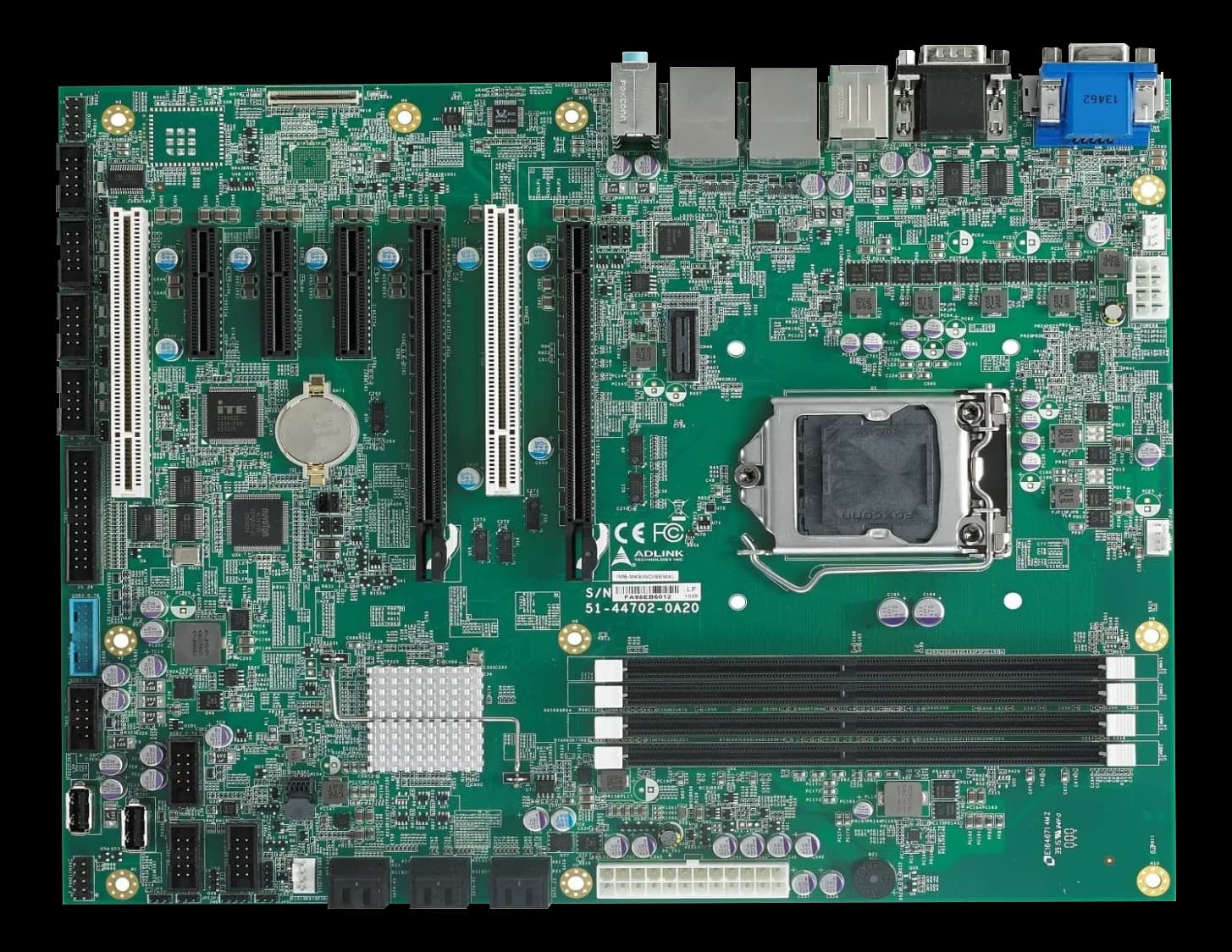

IMB-M43Motherboard ATX industriale con chipset Intel Q170 e socket LGA1151
- Produttore
IMB-M43 è una motherboard ATX industriale: accetta processori Intel Core i9/i7/i5/i3, Pentium e Celeron di 6ª generazione (Skylake) e 7ª generazione (Kaby Lake), con TDP fino a 65 W. La memoria DDR4 arriva a 64 GB.
L'espansione offre slot PCIe x16, PCIe x8, PCIe x4 e PCI. Le uscite video comprendono VGA e DisplayPort. Lo storage copre SATA. L'esercizio è dichiarato fra 0 e 60 °C.
In sintesi
- Socket CPU: LGA1151
- Classe CPU: Intel Core i3/i5/i7/i9
- Generazione CPU: 7ª gen (Kaby Lake)
- Processore: Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T)
- Watchdog: sì
Specifiche tecniche
| Socket CPU | LGA1151 |
|---|---|
| Chipset | Q170 |
| Classe CPU | Intel Core i3/i5/i7/i9Intel Celeron/Pentium |
| BIOS | AMI® UEFI BIOS, 128 Mb SPI Flash Memory |
| Generazione CPU | 7ª gen (Kaby Lake)6ª gen (Skylake) |
| Processore | Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) |
| Watchdog | sì |
| TDP CPU | 65–65 W |
| Core CPU | 2–4 |
| Thread CPU | 2–700 |
| Grafica | Integrated Intel®HD Graphics series (based on CPU) |
| Tipo RAM | DDR4 |
|---|---|
| RAM massima espandibile | 64–64 GB |
| Memoria RAM | Four 288 PIN DDR4 Sockets (vertical type) · Dual channel DDR4 2133/2400 MHz, up to 64 GB |
| Storage | 6x SATA 6.0 Gb/s connectors Software RAID support 0/1/5/10 |
|---|
| Uscite video | 1x VGA connector (rear), resolution up to 1920 x 1200 @ 60 Hz · 2x DP connector (rear), resolution up to 4096 x 2304 @ 60 Hz |
|---|
| Porte USB | 6x USB 3.0 connectors (rear) 2x USB 3.0 pin headers 4x USB 2.0 pin headers 2x USB 2.0 (vertical type A connector) |
|---|---|
| Audio | Realtek®ALC262-VC2-GR · 1x Mic-in, 1x Line-out and 1x Line-in connector (rear) |
| I/O digitale | 1x 10-pin/2.54mm GPIO pin header: 4 in and 4 out, one ground pin and one power pin (5V/12V/no power, jumper selected) |
| Porte Ethernet | LAN1: Intel®I219-LM via RJ45 connector (rear) LAN2: Intel® I211-AT via RJ45 connector (rear) · LAN1 and LAN2 support |
| Interfacce seriali | 2x RS-232/422/485 with auto flow control connector (rear) 4x RS-232 pin headers · PS/2 combo, LAN2, Line In, VGA, COM1, LAN1, Line out, 2x DP, 6x USB3.0, COM2, Mic In |
| Altri I/O | 1x LPT pin header · 1x PS/2 keyboard & Mouse connector (rear) |
| Formato modulo | ATX |
|---|
| Espansione | If PEG3 is occupied, PEG1 is PCIex8 Gen3, PEG2 is PCIex4 Gen3, and PEG3 is PCIex4 Gen3 If PEG3 is not occupied and PEG2 is occupied, PEG1 is PCIex8 Gen3, PEG2 is PCIex8 Gen3, and PEG3 is no signal If PEG3 is not occupied and PEG2 is not occupied, PEG1 is PCIex16 Gen3, PEG2 and PEG3 is no signal PCIe1: PCIe x4 Gen3, PCIe2: PCIe x4 Gen3, PCI1: PCI 2.2, PCI2: PCI 2.2 <Physical Slot> PEG1: PCIex16 slot, PCI1: PCI slot, PEG2: PCIex16 slot, PEG3: PCIex4 slot, PCIe1: PCIex4 slot, PCIe2: PCIex4 slot, PCI2: PCI slot |
|---|
| Dimensioni | 305 × 244 |
|---|---|
| Altre caratteristiche | CPU voltage +3.3 V voltage +5 V voltage +12 V voltage CPU temperature System temperature CPU fan speed System fan speed · LAN1 Support |
| Temperatura di storage | -40–85 °C |
|---|---|
| Temperatura operativa | 0~60 |
| Certificazioni | FCCCE |
|---|
| Sistemi operativi | LinuxWindows |
|---|
Dati estratti dalle schede tecniche dei produttori: per la conferma finale fa fede lo spec sheet ufficiale del prodotto.
