GOI-062-IPCCompact industrial box PC for panels and walls
- Manufacturer

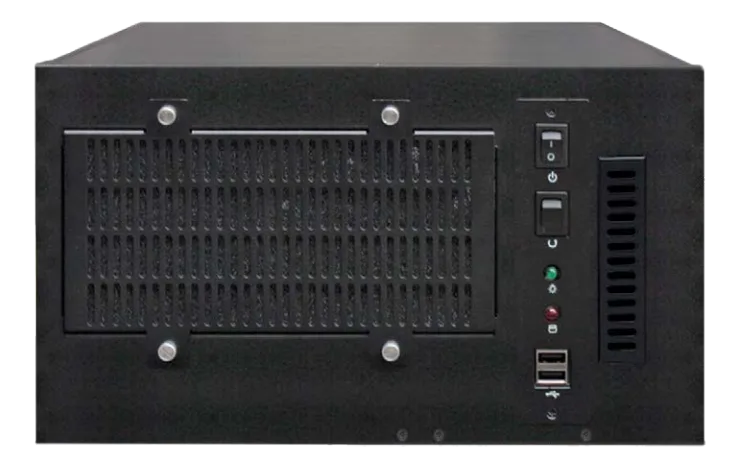

GOI-062 is an industrial box in pre-galvanized steel for wall or panel mounting, with a 320 mm usable side.
It takes a Flex ATX or micro ATX motherboard and four low profile brackets; the front carries a 3.5″ tray, two USB and the power and drive LEDs. Two 90 mm PWM fans move the air through a removable, washable filter.
At a glance
- Storage: External: 1 x 3.5”
- Motherboard form factor: microATX
- Number of slots: 4
- Mounting: Panel Mount
- Cooling: Fan (active)
Technical specifications
| Storage | External: 1 x 3.5” |
|---|
| Other I/O | Front: 2 x USB · Rear: Bay for 4 full height brackets |
|---|
| Motherboard form factor | microATX |
|---|---|
| Number of slots | 4 |
| Mounting | Panel MountWall Mount |
|---|---|
| Chassis material | Pre-galvanized steel |
| Chassis color | Black or other colors on request |
| Dimensions | PC Box - 320 x 177 x 320 mm |
| Front panel buttons | Power On/Off, System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
| Air filter | 1 front-removable washable air filter |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
