GOI-257V-SRV2U industrial server, 19″ rack, for ATX motherboards up to 12″ x 10″
- Manufacturer

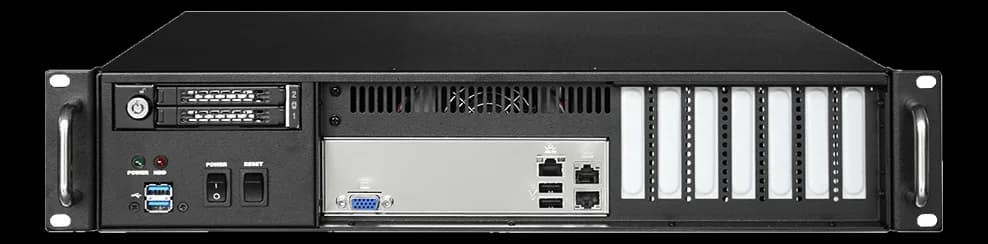

GOI-257V is a series of 2U chassis for a 19″ rack, for ATX motherboards up to 12″ x 10″. The chassis is in pre-galvanized steel and measures 483 x 88 x 400 mm. For drives the series provides 1 x 3.5”.
It is not a catalog code: GOMA assembles it for the application, so the series is configured on request and is not compared with a catalog item. Every unit goes through climatic burn-in and leaves with its acceptance Test Report. The series datasheet is a guideline: the final configuration is agreed with GOMA.
At a glance
- Storage: 1 x 3.5”
- Motherboard form factor: ATX
- Mounting: Rack Mount
- Cooling: Fan (active)
- Operating temperature: 0~50
Technical specifications
| Storage | 1 x 3.5” |
|---|
| Other I/O | Fronte: 2 porte USB 3.0 I/O shield della motherboard Alloggiamento per 7 bracket low profile |
|---|
| Motherboard form factor | ATX |
|---|
| Rack units | 2 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Dimensions | Chassis 2U - 483 x 88 x 400 mm |
| Chassis color | Nero |
| Front panel buttons | Power On/Off e System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
