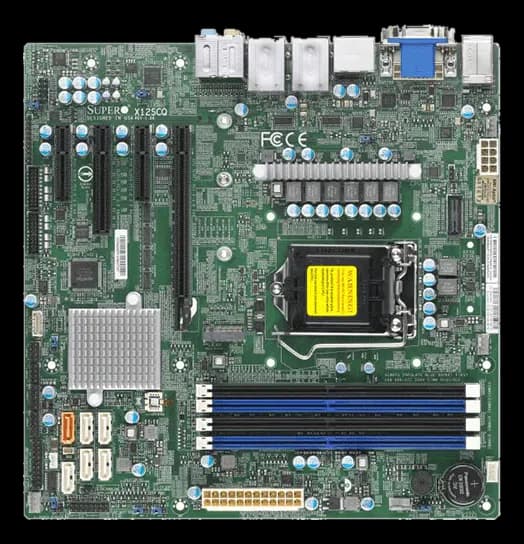

MBD-X12SCQIndustrial microATX motherboard with LGA1200 socket and Intel Q470E chipset
- Manufacturer
- Configurations
- 2 available configurations
The board takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors with a maximum of 10 cores and TDP up to 125 W; memory runs on four DIMM slots at 2933 MHz.
Expansion covers one PCIe 3.0 x16 slot, one x8 slot, two x4 slots and a single M.2 PCIe 3.0 x4 slot with M key in the 2242 and 2280 formats. Video outputs include VGA, DVI-D, DisplayPort and HDMI; networking relies on Intel I219LM and I210-AT controllers over two Gigabit RJ45 ports.
At family level the board is offered in options for 10th or 11th generation Intel processors.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: 11th gen (Tiger Lake)
- CPU TDP: 125 W
- TPM: TPM 2.0
- CPU cores: 10
Technical specifications
| Chipset | Q470E |
|---|---|
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| BIOS | 256Mb AMI BIOS SPI Flash BIOSAMI UEFIACPI 6.0, Plug and Play (PnP), BIOS rescue hot-key, and SMBIOS 3.0 or later |
| CPU generation | 11th gen (Tiger Lake)10th gen (Comet Lake) |
| CPU TDP | 125 W |
| TPM | TPM 2.0 |
| CPU cores | 10 |
| CPU socket | LGA1200 |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 128 GB |
| Memory | Up to 128GB of Non-ECC UDIMM DDR4 memory with speeds of up to 2933MHz in four memory slots4 DIMM slots Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MT/s2933/2666/2400/2133 MT/s |
| Storage | Six SATA 3.0 ports at 6 Gb/s6 SATA3 (6Gbps) port(s)RoHS M.2 NGFF connector Chassis intrusion detection ATX power connector ACPI power management |
|---|
| Video outputs | One HDMI 2.0 portOne VGA port on the rear I/O panelOne DVI port |
|---|
| USB ports | Front Accessible USB 2.0 Headers2 rear type A2 rear type C) 6 USB 2.0 port(s) (4 via header6 USB 3.1 Gen2 port(s) (2 via header |
|---|---|
| Audio | 7.1+2 Channel High Definition Audio (HDA) codec that provides 10 DAC channelsExternal Speaker, Pins 3-4: Buzzer)ALC 888S HD Audio |
| Ethernet ports | Intel I210-AT Gigabit Ethernet ControllerIntel I219LM Gigabit Ethernet PHY2 RJ45 Gigabit Ethernet LAN portsSingle LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT |
| Serial interfaces | Four serial ports on two internal headers (COM12, COM34) |
| Form factor | microATX |
|---|
| Expansion | One M.2 PCIe 3.0 x4 Slot (Supports M-Key 2242, 2280, and 22110) |
|---|
| Storage temperature | -40–85 °C |
|---|
| Ethernet ports | 1 GbE |
|---|
