Industrial PCs with Motherboard
GO-254-IPC2U steel rack chassis for ATX motherboards, removable drives
- Manufacturer

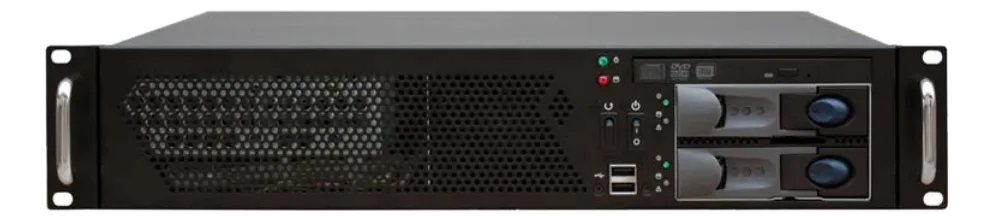

GO-254ATX is a two rack unit chassis in pre-galvanized steel for 19 inch cabinets, 383 mm deep.
It houses an ATX motherboard up to 9.6″ × 9.6″ and four low profile brackets at the rear; the front combines a slim 5.25″ drive, two removable 3.5″ drives and two USB, with another two internal drives. An 80 mm fan cools the interior and the LEDs indicate power and drive activity.
At a glance
- Motherboard form factor: microATX
- Number of slots: 4
- Mounting: Rack Mount
- Cooling: Fan (active)
- Operating temperature: 0~50
Technical specifications
| Storage | 1 x 5.25” Slim, 2 x 3.5” removable HDD + 2 x 3.5” internal HDD |
|---|
| Other I/O | Front: 2 x USB · Rear: Bay for 4 low profile brackets |
|---|
| Motherboard form factor | microATX |
|---|---|
| Number of slots | 4 |
| Rack units | 2 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Pre-galvanized steel |
| Chassis color | Black, beige or other colors on request |
| Dimensions | Chassis 2U - 483 x 88 x 383 mm |
| Front panel buttons | Power On/Off and System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
