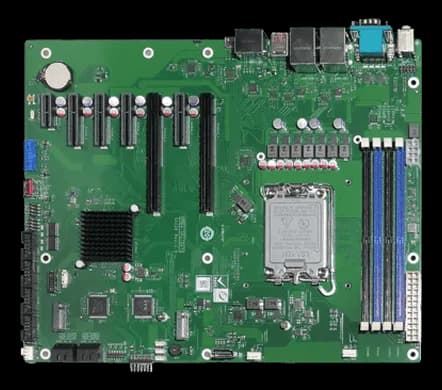

IMB-ARL-H810-R10Industrial microATX motherboard for Intel Core Ultra Series 2, LGA1851 socket
- Manufacturer
IMB-ARL-H810-R10 is the IEI industrial motherboard in microATX 244 × 244 mm form factor with AMI UEFI BIOS, intended for control stations, test benches and industrial desktop systems housed in standard chassis.
The integrated graphics adopt the new Intel Xe architecture with SRIOV and Genlock, so the video chain is managed at platform level, not only at operating system level.
The power supply accepts ATX/AT units with support for AT and ATX modes and is ErP/EuP compliant; the programmable watchdog from 1 to 255 seconds performs a system reset and the TPM header supports Intel PTT.
At a glance
- Supported CPUs up to 65 W TDP
- DDR5 dual-channel up to 96 GB
- Triple independent display with DP, HDMI and iDPM
- Two RJ45 Intel I219-LM and I226-V
- PCIe x16 slot with Gen5 signaling
Technical specifications
| BIOS | AMI UEFI BIOS |
|---|---|
| CPU generation | Core Ultra Series 2 |
| CPU TDP | 65 W |
| TPM | Header (provision) |
| Watchdog | Software Programmable support 1~255 sec. System reset |
| Graphics | New Intel® Xe Graphics architecture with SRIOV, Genlock |
| RAM type | DDR5 |
|---|---|
| Maximum RAM | 96 GB |
| Memory | 2× DIMM DDR5 288-pin 5600 MT/s |
| Storage | 4× SATA : 6Gb/s |
|---|
| Video outputs | Triple independent display · 1× iDPM : only for IEI module |
|---|
| USB ports | 2× External USB 3.2 Gen1x1 : Type-A (5Gb/s)4× Internal USB 2.0 : 2xr pin, P=2.54 |
|---|---|
| Audio | 2× Audio Jack (Line-out, Mic-in) on rear IO |
| Digital I/O | 1× DIO : 12-bit digital I/O (2x7 pin) |
| Ethernet ports | LAN1: Intel® I219-LM controllerLAN2: Intel® I226V 2.5GbE controllerTwo RJ45 network ports are provided via Intel® I219-LM and I226-V network controller to achieve up to 2.5GbE network transmission rate |
| Serial interfaces | 2× External RS-232/422/485 : RS-485 support AFC4× Internal RS-232 : 2x5 pin, P=2.54 |
| Other I/O | 2× LAN LED (1x2 pin) |
| Form factor | microATX |
|---|
| Supply voltage | ATX/AT power supply |
|---|
| Dimensions | 244mm x 244mm |
|---|---|
| Weight | 0.7 kg |
| Other features | Fintek F81966 |
| Storage temperature | -30–70 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
