Industrial PCs with Motherboard

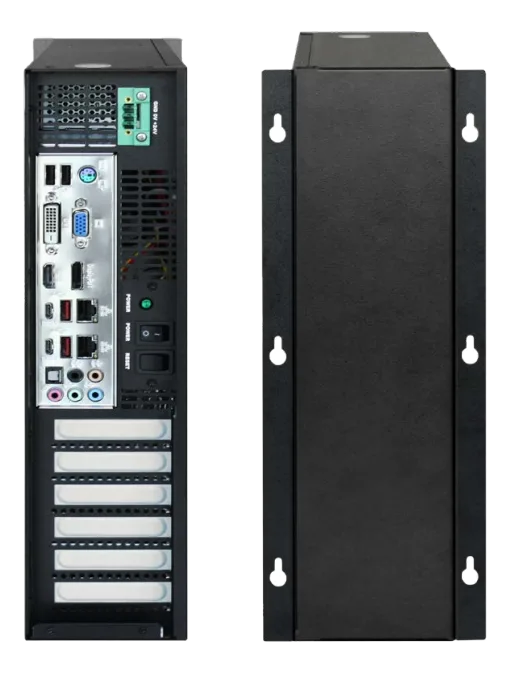

GO-B02-IPCBook-mount or benchtop chassis with 24 VDC power input
- Manufacturer
GO-B02 is a chassis in black pre-galvanized steel, supplied with the brackets for book-mount installation and usable resting on a bench as well. It takes 9.6" x 9.6" motherboards and low profile expansion boards.
Power comes through a 24 VDC front input, with an AC version available on request. The front carries the motherboard I/O shield and the integrated board brackets, together with the power and drive activity LEDs and the power and system reset buttons.
At a glance
- Storage: Optional Cfast reader
- Motherboard form factor: microATX
- Number of slots: 6
- Expansion: 6 slot low profile
- AC/DC input: DC
Technical specifications
| Storage | Optional Cfast readerDisk on Module(optional)M.2 Interface: 1× PCI-E 3.0 x4 NVMe(optional)Removable CFAST module(optional) |
|---|
| Other I/O | Front: I/O shield motheboard and integrated card brackets |
|---|
| Motherboard form factor | microATX |
|---|---|
| Number of slots | 6 |
| Expansion | 6 slot low profileEthernet Server Adapter(optional)Frame Grabber(optional)GPGPU / Video Cards(optional)MIL-1553 / ARINC 429 / ARINC 418(optional)FPGA boards(optional)Analog and Digital I/O Boards(optional)Multi-Head Cards(optional)MULTISERIAL boards(optional) |
|---|
| AC/DC input | DCAC(optional) |
|---|---|
| Supply voltage | 24 VDC power supply unit - Front power input AC version on request V |
| Mounting | BookBook-mountDesktop / Stand |
|---|---|
| Chassis material | Pre-galvanized steel |
| Chassis color | Black or other colors on request |
| Dimensions | Chassis - 350(A) x 88(L) x 279(P) mm |
| Front panel buttons | Power On/Off and System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 °C |
| Operating temperature | 0–50 °C |
| Operating systems | Linux(optional)Windows(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
