Industrial PCs with Motherboard
GO-B03-IPCBook-mount industrial server with six full height slots and front I/O
- Manufacturer
GO-B03 is a book-mount chassis for 9.6″ × 9.6″ motherboards, with brackets included and desktop use as well: chassis in pre-galvanized steel, 350 × 124.9 × 279 mm.
The six slots are full height and the solution is Front I/O, with the motherboard shield and the board brackets integrated on the front; two 60 mm fans cool the interior, a CFast reader is optional, and every unit goes through climatic burn-in and leaves with its acceptance Test Report. GOMA configures it for the application.
At a glance
- Storage: Optional Cfast reader
- Motherboard form factor: microATX
- Number of slots: 6
- Expansion: 6 slot Full Height
- Mounting: Book
Technical specifications
| Storage | Optional Cfast reader |
|---|

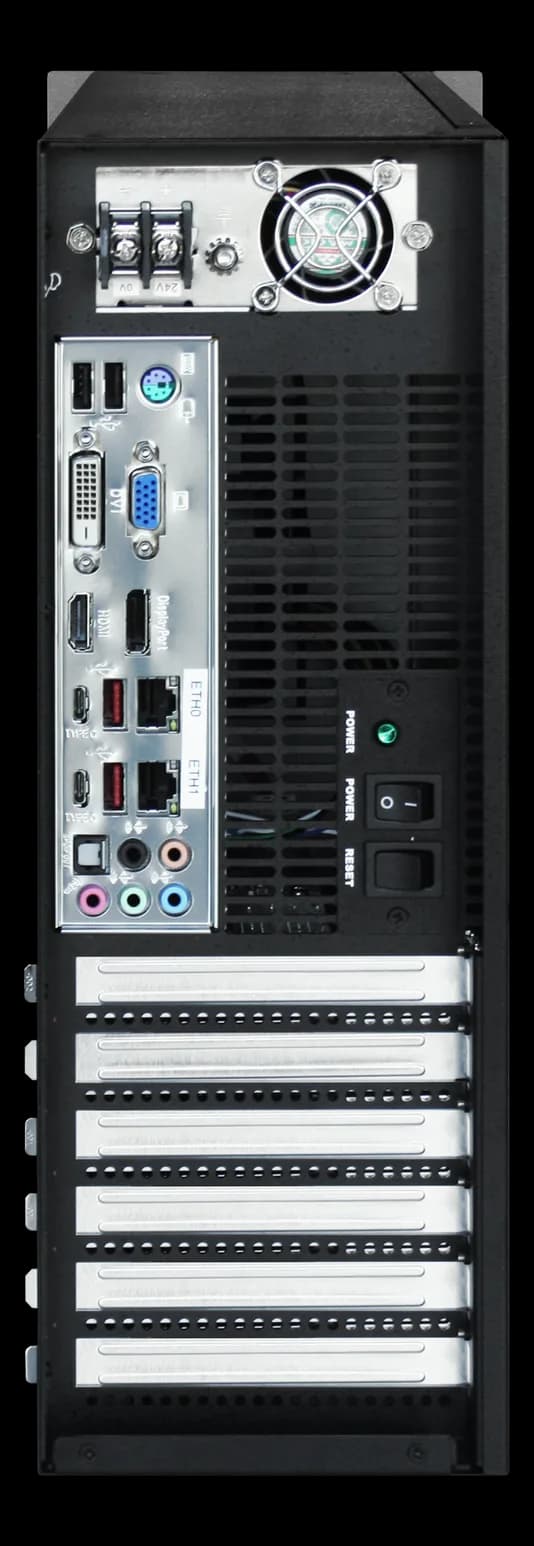

| Other I/O | Front: I/O shield motheboard and integrated card brackets |
|---|
| Motherboard form factor | microATX |
|---|---|
| Number of slots | 6 |
| Expansion | 6 slot Full Height |
|---|
| Supply voltage | 1U depth power supply unit - Front power input AC or DC version |
|---|
| Mounting | BookDesktop / Stand |
|---|---|
| Chassis material | Pre-galvanized steel |
| Chassis color | Black or other colors on request |
| Dimensions | Chassis - 350(A) x 124.9(L) x 279(P) mm |
| Front panel buttons | Power On/Off and System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
