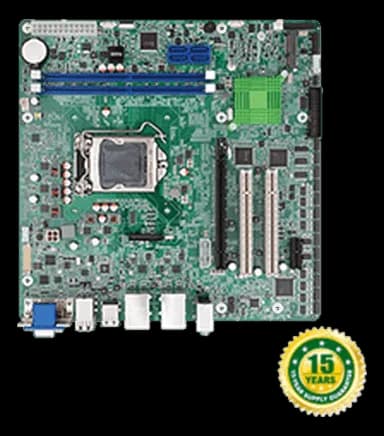

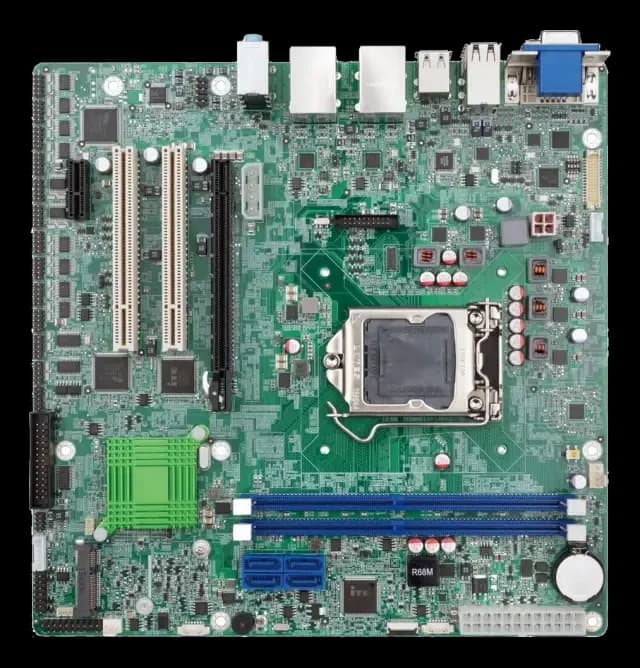

IMB-H110Industrial microATX motherboard with Intel H110 chipset and LGA1151 socket
- Manufacturer
IMB-H110 is an industrial microATX motherboard: it takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors, 6th Gen (Skylake) and 7th Gen (Kaby Lake).
Expansion offers PCIe x16, PCIe x1 and PCI slots. Video outputs cover VGA, HDMI, DisplayPort, DVI and LVDS. Storage covers SATA. Operating range is declared between -20 and 60 °C.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: 6th gen (Skylake)
- Processor: LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
- TPM: Header (provision)
- CPU socket: LGA1151
Technical specifications
| Chipset | H110 |
|---|---|
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| CPU generation | 6th gen (Skylake)7th gen (Kaby Lake) |
| Processor | LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor |
| TPM | Header (provision) |
| CPU socket | LGA1151 |
| RAM type | DDR4 |
|---|---|
| Memory | Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM · 64GB |
| Storage | 4 x SATA :6Gb/s |
|---|
| Video outputs | 1 x VGA :up to 1920x1200@60Hz 1 x DVI-I :up to 1920x1200@60Hz 1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz) 1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) |
|---|
| USB ports | 6 x External USB 2.0 · 4 x External USB 3.2 Gen1x1 · 2 x Internal USB 2.0 :2x4 pin, p=2.0 |
|---|---|
| Audio | Description: Realtek ALC662 HD Audio codec supports 5.1-channel 1 x Line in :on rear IO 1 x Line out :on rear IO 1 x Mic :on rear IO |
| Ethernet ports | 2 x LAN :LAN1: RTL 8111GN controller / LAN2: RTL 8111GN controller |
| Serial interfaces | Internal RS-232 :2x5 pin, p=2.0 · 2 x Internal RS-232/422/485 :2x5 pin , p=2.0 |
| Other I/O | 1 x PS/2 :1x6 pin · 1 x LPT :2x13 pin, p=2.54 |
| Form factor | microATX |
|---|
| Expansion | 1 x PCIe x16 :Gen3 1 x PCIe x1 :Gen2 2 x PCI Slot 1 x PCIe mini Card Slot :Full-size slot |
|---|
| Power input | Support AT/ATX mode · 3.3V@ 0.93A, 5V@2.99A, 12V@6.88A, 5VSB@0.02A (Intel® Core™ i7-6700K 4.0GHz CPU with 16GB (two 8GB) 2133 MHz DDR4 memory) |
|---|
| Weight | 0.7–0.7 kg |
|---|
| Storage temperature | -30–70 °C |
|---|---|
| Operating temperature | −20~60 |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
