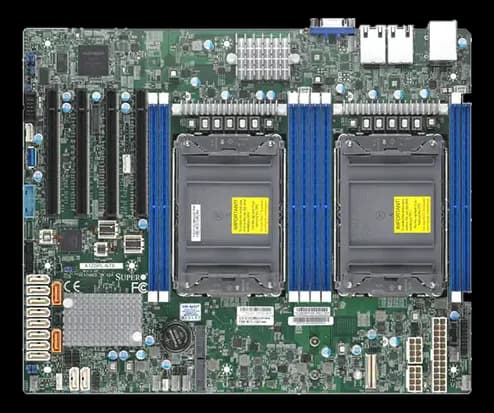

MBD-X12DPL-NT6Server motherboard with Intel C621A chipset and LGA4189 socket
- Manufacturer
MBD-X12DPL-NT6 is a server motherboard in ATX form factor: it takes Intel Xeon processors, 3rd Gen Scalable (Ice Lake-SP), with TDP up to 185 W. Memory reaches 2 TB, with error correction.
Expansion offers PCIe x16 slots. Networking combines 10 Gigabit and Gigabit ports. Video outputs cover VGA. Storage covers M.2 NVMe and SATA. Operating range is declared between 10 and 35 °C.
At a glance
- CPU generation: 3rd gen Scalable (Ice Lake-SP)
- Processor: 3rd Gen Intel® Xeon® Scalable processors; Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
- CPU TDP: 185 W
- TPM: Header (provision)
- CPU socket count: 2–2
Technical specifications
| BIOS | AMI UEFI |
|---|---|
| CPU generation | 3rd gen Scalable (Ice Lake-SP) |
| Processor | 3rd Gen Intel® Xeon® Scalable processors; Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s |
| CPU TDP | 185 W |
| TPM | Header (provision) |
| CPU socket count | 2–2 |
| CPU class | Intel Xeon |
| Chipset | C621A |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| CPU socket | LGA4189 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 2048–2048 GB |
| Memory | 8 DIMM slots; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s · 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM · 256GB; LRDIMM: 256GB; RDIMM: 256GB · 1.2V · Corrects single-bit errors; Detects double-bit errors (using ECC memory) |
| Storage | Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 4.0 x4; Form Factor: 2280/22110, 2280; Key: M-Key, M-Key |
|---|
| Video outputs | 1 VGA port(s) |
|---|
| Other I/O | 2 SATA DOM (Disk on Module) power connector support · 8x 4-pin fan headers (up to 8 fans); PWM fan speed control; Overheat LED indication |
|---|---|
| Ethernet ports | Dual LAN with Intel® X550 10GBase-T Ethernet Controller · 2 RJ45 10 Gigabit Ethernet LAN ports |
| Serial interfaces | 1 COM |
| Form factor | ATX |
|---|
| Expansion | 4 PCIe 4.0 x16 |
|---|
| Power input | ACPI Power Management |
|---|
| Dimensions | 310.6 × 254.0 |
|---|---|
| Other features | ASPEED AST2600 BMC · SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities · IPMICFG, IPMIView for Linux/Windows, SMCIPMITool · Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status · UID/remote UID LED; BMC/IPMI Heartbeat LED · UID, Node manager support, Dual cooling zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX power connector, ACPI power management, RoT, NCSI header |
| Storage temperature | -40–70 °C |
|---|---|
| Operating temperature | 10~35 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
