GO-406ATXR-IPC4U rack chassis for shallow cabinets, with captive screw door
- Manufacturer

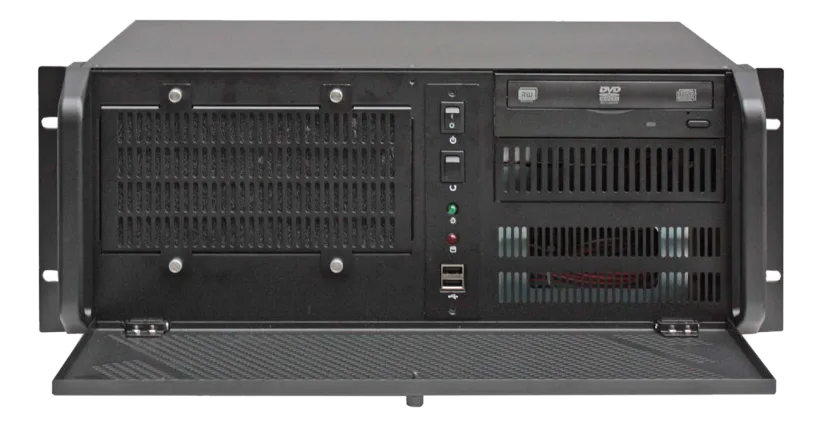

GO-406ATXR is a four rack unit chassis in pre-galvanized steel for shallow cabinets: 302 mm deep, with a front door closed by a captive screw.
The interior takes an ATX motherboard up to 9.6″ × 9.6″ and four low profile brackets, with two 5.25″ drives and four internal 2.5″ drives. Two 92 mm fans cool the chassis and the 30 ppi air filter slides out from the front for washing.
At a glance
- Storage: 2 x 5.25” + 4 x 2.5” interni
- Motherboard form factor: microATX
- Number of slots: 4
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 2 x 5.25” + 4 x 2.5” interni |
|---|
| Other I/O | Fronte: Sportello con vite imperdibile · Retro: Alloggiamento per 4 bracket full height |
|---|
| Motherboard form factor | microATX |
|---|---|
| Number of slots | 4 |
| Rack units | 4 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |
| Dimensions | Chassis 4U - 483 x 177 x 302 mm |
| Front panel buttons | Power On/Off e System Reset |
| Other features | Struttura per drives Barra di ritenzione schede ad altezza regolabile |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
| Air filter | 1 filtro per l’aria rimovibile dal fronte lavabile 30 ppi |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
