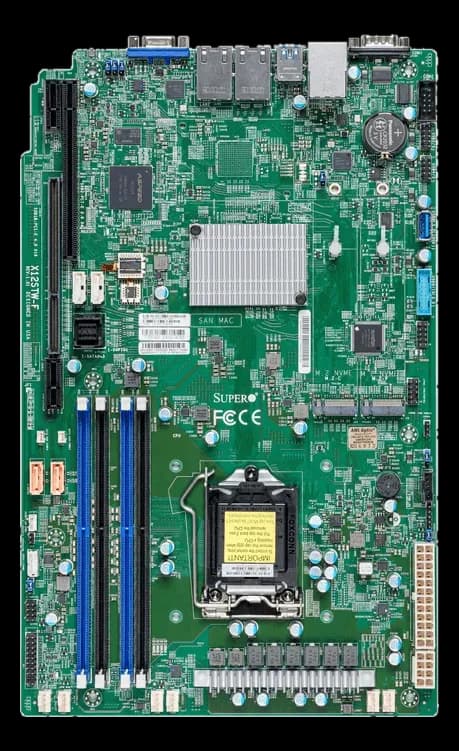

MBD-X12STW-FWorkstation motherboard with Intel C256 chipset and LGA1200 socket
- Manufacturer
- Configurations
- 2 available configurations
MBD-X12STW-F is a workstation motherboard in WIO form factor: it takes Intel Xeon, Pentium and Celeron processors, 10th Gen (Comet Lake), with TDP up to 95 W. Memory reaches 128 GB, with error correction.
Expansion offers PCIe x16, PCIe x8, PCIe x4 and M.2 slots. Video outputs cover VGA. Storage covers M.2 NVMe, M.2 SATA and SATA. Operating range is declared between 0 and 50 °C.
At a glance
- CPU generation: 10th gen (Comet Lake)
- Processor: 10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor; Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
- CPU TDP: 95 W
- TPM: Header (provision)
- CPU cores: 1–8
Technical specifications
| BIOS | 256MB UEFI · ACPI 6.0; SMBIOS 3.3; Plug and Play (PnP); RTC (Real Time Clock) Wakeup; UEFI 2.7; USB Keyboard support; PCI 3.0 · 256Mb AMI BIOS SPI Flash BIOS; ACPI 6.0 or later, PCI F/W 3.0 or later, Plug and Play (PnP), SPI dual speed support, riser card auto detection support, SMBIOS 2.7 or later, real time clock (RTC) wakeup |
|---|---|
| CPU generation | 10th gen (Comet Lake) |
| Processor | 10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor; Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP |
| CPU TDP | 95 W |
| TPM | Header (provision) |
| CPU cores | 1–8 |
| CPU socket count | 1–1 |
| CPU threads | 16–16 |
| Watchdog | sì |
| CPU class | Intel Celeron/PentiumIntel Xeon |
| Chipset | C256 |
| Graphics | 1 ASPEED AST2600 BMC port(s) · Graphics controller via ASpeed AST2600 BMC |
| CPU socket | LGA1200 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 128–128 GB |
| Memory | 4 DIMM slots; Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s · 3200/2933/2666 MT/s SDRAM · 4GB, 8GB, 16GB, 32GB · 1.2V · Corrects single-bit errors · Supports up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz in four memory slots. Note: Speed support is up to 2666MHz when a Pentium processor is installed. Speed support is up to 2933 MHz for 2R2R configurations. · Up to 32GB at 1.2V |
| Storage | Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · 8 SATA3 (6Gbps) port(s) · M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4; Form Factor: 2280/22110; Key: M-Key; Double Height Connector · M.2 PCIe 4.0 x4 Slot (2280/22110) (M.2-C is not supported when a Pentium processor is installed) · Intel PCH SATA 3.0 Port (I-SATA0-3) |
|---|
| Video outputs | 1 VGA port(s) · JCOM1: COM Port, JCOM2: COM Header; Eight SATA 3.0 ports (JSATA1, I-SATA4 - I-SATA7) (Two SuperDOM); One VGA connection on the I/O back panel |
|---|
| Other I/O | 2 SATA DOM (Disk on Module) power connector support · 6x 4-pin fan headers (up to 6 fans); Thermal control tachometer fan connectors; Fan speed control; 6 fans with tachometer status monitoring; Overheat LED indication |
|---|---|
| USB ports | 1 USB 3.2 Gen2 port(s) (1 rear type A) · Two USB 2.0 ports on the back I/O panel (USB0/1); Two front accessible USB 2.0 headers with two USB connections each (USB2/3, USB4/5); Two USB 3.2 Gen 1 ports on the back I/O panel (USB6/7); One USB 3.2 Gen 2 Type-A header (USB8); One front accessible USB 3.2 Gen 1 header with two USB connections (USB9/10) |
| Ethernet ports | Dual LAN with Intel® Ethernet Controller I210-AT · 2 RJ45 · Intel i210 (-F SKU) · Dedicated BMC LAN Port |
| Serial interfaces | 1 COM; 1 COM · This motherboard supports two serial communication connections. COM port 1 and COM header 2 can be used for input/output. The UART provides legacy speeds with a baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support high-speed serial communication devices. |
| Form factor | WIO |
|---|
| Expansion | 1 PCIe 4.0 x16 Left Riser Slot, 1 PCIe 3.0 x4 (in x8 slot) · One SMC-Proprietary WIO-L PCIe 4.0 x16 Slot (JSXB1A, JSXB1B, JSXB1C); One SMC-Proprietary WIO-R PCIe 3.0 x4 Slot (JSXB2); One M.2 slot for PCIe 4.0 x4 (Supports M-Key 2280 / 22110 FF); One M.2 slot for PCIe 3.0 x4 (Supports M-Key 2280 / 22110 FF) · SMC-Proprietary WIO_L (Left) PCIe 4.0 x16 Add-On Card Slots (WIO-L will run at PCIe 3.0 x16 when a Pentium processor is installed) |
|---|
| Power input | ACPI Power Management · 24-pin ATX Power Connector · 8-pin Power Connector |
|---|
| Dimensions | 330.2 × 203.2 |
|---|---|
| Other features | ASPEED AST2600 BMC · SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities · IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support · VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages · UID/remote UID LED; CPU/system overheat LED · WOL, UID, Node manager support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management · ASpeed AST2600 BMC · IPMI View, SMCIPMITOOL, IPMICFG; Trusted Platform Module (TPM) support; SuperDoctor® 5 |
| Storage temperature | -40–70 °C |
|---|---|
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MBD-X12STW-F-B |
| MBD-X12STW-F-O |
