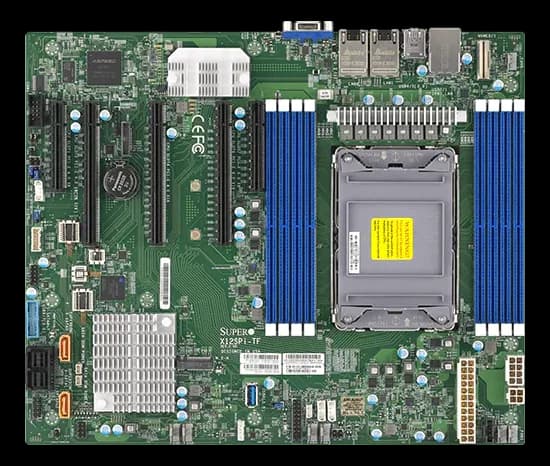

MBD-X12SPI-TFATX C621A motherboard for 3rd generation Intel Xeon Scalable
- Manufacturer
- Configurations
- 2 available configurations
MBD-X12SPI-TF is a server motherboard in ATX form factor: it brings a Xeon Scalable platform inside a standard enclosure, a usual choice for departmental servers and for systems installed outside the machine room.
The C621A chipset takes 3rd generation Intel Xeon Scalable processors with TDP up to 270 W and handles DDR4 memory with error correction. Solid state storage mounts on the M.2 slots in the 22110 and 2280 formats, while TPM 2.0 covers verified boot and disk encryption. The board works from 0 to 50 °C, with storage from -20 to 60 °C.
At a glance
- CPU generation: 3rd gen Scalable (Ice Lake-SP)
- CPU TDP: 270 W
- TPM: Header (provision)
- CPU cores: 40
- CPU class: Intel Xeon
Technical specifications
| BIOS | 256 Mb AMI BIOS® SPI Flash BIOSAMI UEFI |
|---|---|
| CPU generation | 3rd gen Scalable (Ice Lake-SP) |
| CPU TDP | 270 W |
| TPM | Header (provision)TPM 2.0 |
| CPU cores | 40 |
| CPU class | Intel Xeon |
| Chipset | C621A |
| RAM type | DDR4 |
|---|---|
| ECC support | Yes |
| Memory | 8 DIMM slots Up to 2TB Intel® Optane™ Persistent Memory 200 Series Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/sECC , DDR4 LRDIMM (3DS), RDIMM (3DS)Supports up to 2048 GB of ECC 3DS RDIMM/LRDIMM with speeds up to 3200 MHz in eight slots. |
| Storage | Two SATA 3.0 ports with SATA DOM power (S-SATA0, S-SATA1)Intel® C621A controller for 10 SATA3 (6 Gbps) ports |
|---|
| Ethernet ports | 2 RJ45 10 Gigabit Ethernet LAN portsDual 10G Base-T Ports (LAN1, LAN2)One Dedicated IPMI LAN located on the rear I/O panel |
|---|---|
| Serial interfaces | One front accessible serial port header |
| Form factor | ATX |
|---|
| Expansion | One M.2 PCIe 3.0 x4/SATA3 slot (M-Key 2280/22110) |
|---|
| Storage temperature | -20–60 °C |
|---|---|
| Operating temperature | 0–50 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible systems
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MBD-X12SPI-TF-B |
| MBD-X12SPI-TF-O |
