Industrial Server Motherboards

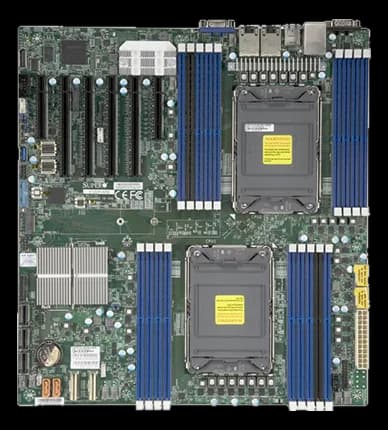

MBD-X12DPi-NT6Dual socket E-ATX motherboard with two 10G Ethernet ports
- Manufacturer
- Configurations
- 2 available configurations
MBD-X12DPi-NT6 is a server motherboard in E-ATX form factor with two sockets for 3rd generation Intel Xeon Scalable processors, up to 40 cores and with TDP up to 270 W. Compared with the Gigabit networking variant, here the two Ethernet ports work at 10G: the difference weighs when nodes exchange entire datasets and not just commands.
The C621A chipset handles DDR4 ECC memory over 16 DIMM slots, alongside Intel Optane PMem. Remote management goes through the ASPEED AST2600 BMC with a dedicated network port, while storage is allowed from -40 to 70 °C.
At a glance
- CPU generation: 3rd gen Scalable (Ice Lake-SP)
- Processor: Dual 3rd Gen Intel Xeon Scalable Family Processors (Socket P+/LGA4189), fino a 40 core, TDP fino a 270W
- CPU TDP: up to 270W W
- TPM: Header (provision)
- CPU socket count: 2
Technical specifications
| BIOS | AMI UEFIAMI BIOS |
|---|---|
| CPU generation | 3rd gen Scalable (Ice Lake-SP) |
| Processor | Dual 3rd Gen Intel Xeon Scalable Family Processors (Socket P+/LGA4189), fino a 40 core, TDP fino a 270W |
| CPU TDP | up to 270W W |
| TPM | Header (provision) |
| CPU socket count | 2 |
| CPU class | Intel Xeon |
| Chipset | C621A |
| Graphics | Graphics controller & VGA support via ASPEED AST2600 BMC |
| RAM type | DDR4 |
|---|---|
| ECC support | Yes |
| Maximum RAM | 4 TB GB |
| Memory | 18 DIMM slots Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.up to 4TB 3DS LRDIMM/LRDIMM/3DS RDIMM/RDIMM DDR4 (288-pin) ECC memory with speeds of 3200/2933/2666MHz in 16 DIMM slotsSee Validation Matrix (DDR4 DIMMs validated with PMem)3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM |
| Storage | Intel® C621A controller for 14 SATA3 (6 Gbps) portsOne PCIExpress 4.0 x4 M.2 slot (supports M-Key 2280 and 22110)(M.2-M) |
|---|
| Other I/O | Rear I/O Ports: COM1, USB2/3/7/8 (USB 3.0), BMC LAN, GLAN1/2 (10G_LAN1/2 su NT6), Rear VGA (JVGA), Unit Identifier Switch (UID) |
|---|---|
| USB ports | 1 type A) 2 USB 2.0 port(s) (2 via header)One front-accessible USB 3.0 header with two USB 3.0 ports (USB4/5) supported4 rear7 USB 3.2 Gen1 port(s) (2 via headerOne front-accessible USB 2.0 header with two USB 2.0 ports (USB0/1) supported |
| Ethernet ports | Two 10G Ethernet LAN ports supported by Intel X550 on LAN Controller 12 RJ45 10 Gigabit Ethernet LAN ports |
| Form factor | E-ATX |
|---|
| Storage temperature | -40–70 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible systems
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MBD-X12DPI-NT6-B |
| MBD-X12DPI-NT6-O |
