Industrial Server Motherboards

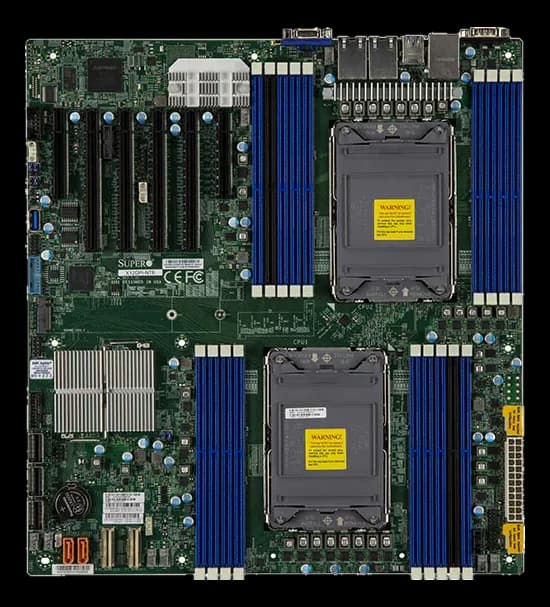

MBD-X12DPi-N6Dual socket E-ATX motherboard for 3rd generation Intel Xeon Scalable
- Manufacturer
- Configurations
- 2 available configurations
MBD-X12DPi-N6 is a server motherboard in E-ATX form factor with two sockets: it is the base of dense compute systems, where power comes from pairing two 3rd generation Intel Xeon Scalable processors, up to 40 cores and with TDP up to 270 W.
The C621A chipset handles up to 4 TB of DDR4 ECC memory over 16 DIMM slots. On-board I/O includes eight SATA 3.0 ports, two 1G Ethernet ports and remote management entrusted to the ASPEED AST2600 BMC, with a dedicated network port. Storage is allowed from -40 to 70 °C.
At a glance
- CPU generation: 3rd gen Scalable (Ice Lake-SP)
- CPU TDP: up to 270W W
- TPM: Header (provision)
- CPU socket count: 2
- CPU class: Intel Xeon
Technical specifications
| BIOS | AMI BIOSAMI UEFI |
|---|---|
| CPU generation | 3rd gen Scalable (Ice Lake-SP) |
| CPU TDP | up to 270W W |
| TPM | Header (provision) |
| CPU socket count | 2 |
| CPU class | Intel Xeon |
| Chipset | C621A |
| Graphics | Graphics controller & VGA support via ASPEED AST2600 BMC |
| RAM type | DDR4 |
|---|---|
| ECC support | Yes |
| Memory | 18 DIMM slots Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)up to 4TB 3DS LRDIMM/LRDIMM/3DS RDIMM/RDIMM DDR4 (288-pin) ECC memory with speeds of 3200/2933/2666MHz in 16 DIMM slots |
| Storage | Eight I-SATA 3.0 ports at 6GB/s (I-SATA0-3, 4-7)Intel® C621A controller for 14 SATA3 (6 Gbps) portsOne PCIExpress 4.0 x4 M.2 slot (supports M-Key 2280 and 22110)(M.2-M) |
|---|
| USB ports | One front-accessible USB 2.0 header with two USB 2.0 ports (USB0/1) supportedOne front-accessible USB 3.0 header with two USB 3.0 ports (USB4/5) supportedOne internal USB 3.0 Type A header (USB6)Four USB 3.0 ports on the rear I/O panel (USB2/3, USB7/8)1 type A) 2 USB 2.0 port(s) (2 via header)4 rear7 USB 3.2 Gen1 port(s) (2 via header |
|---|---|
| Ethernet ports | Dual LAN with Intel® i350 Gigabit Ethernet ControllerTwo 1G Ethernet LAN ports supported by Intel i350 on LAN Controller 22 RJ45 Gigabit Ethernet LAN ports |
| Form factor | E-ATX |
|---|
| Storage temperature | -40–70 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible systems
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MBD-X12DPI-N6-B |
| MBD-X12DPI-N6-O |
