MBD-X12SCA-FATX workstation motherboard with Intel W480 or W480E chipset
- Manufacturer
- Configurations
- 2 available configurations

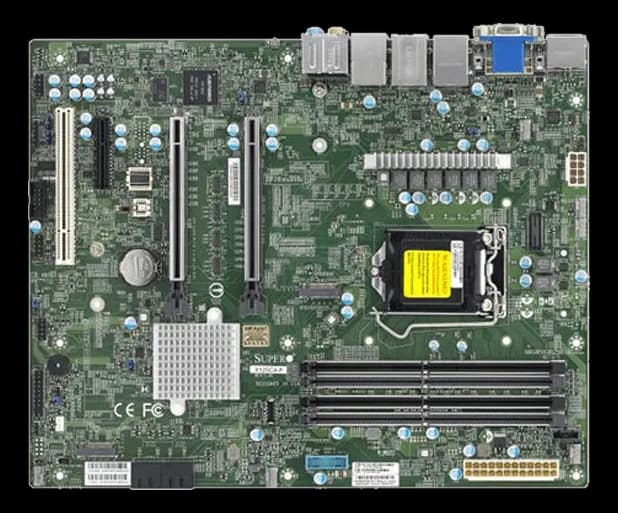

MBD-X12SCA-F is a motherboard in ATX form factor for professional workstations, where memory with error correction and remote administration are needed. The chipset is declared in the Intel W480 and W480E versions.
The VGA port is reserved for IPMI management, the channel through which the machine is administered even when the operating system does not answer. Solid state storage finds room on the M.2 slots in the 22110 and 2280 formats, while the watchdog and the service serial port complete a set meant for continuous operation rather than for the office desk.
At a glance
- CPU generation: 10th gen (Comet Lake)
- CPU TDP: 125–300 W
- CPU threads: 8–32
- Watchdog: Yes
- CPU class: Intel Xeon
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| CPU TDP | 125–300 W |
| CPU threads | 8–32 |
| Watchdog | Yes |
| CPU class | Intel XeonIntel Core i3/i5/i7/i9 |
| Chipset | W480W480E |
| Graphics | VGA port is dedicated for IPMI |
| RAM type | DDR4 |
|---|---|
| ECC support | Yes |
| Memory | 4 DIMM slots 128GB Unbuffered ECC/non-ECC UDIMM GB(DDR4 · 2933MT/s) |
| Storage | 1x M.2 B-Key (3052/3042)Intel® W480/ W480E controller for 4 SATA3 (6 Gbps) ports1x M.2 M-Key (2242/2280)1x 2.5” SATA drive1x 3.5” SATA drive1x M.2 B-Key (2242/2280/3052)2x 2.5” NVMe drives(M.2) |
|---|
| Video outputs | 1 VGA port(s), 1 DVI - D port(s)One HDMI 2.0a connection on the rear I/O panelOne DisplayPort 1.4 connection on the rear I/O panelOne DVI-D on the rear I/O panel |
|---|
| USB ports | 2 USB 3.2 Gen1 port(s) (2 type A) |
|---|---|
| Audio | BuzzerExternal Speaker |
| Ethernet ports | Dual 10GBase-T LAN1 RJ45 1 RJ45 1 RJ45Realtek RTL8211F (Dedicated IPMI LAN Port, X12SCA-F only) |
| Serial interfaces | One front accessible serial port header (COM1) |
| Form factor | ATX |
|---|
| Expansion | Two M.2 PCIe 3.0 x4 Sockets (Supports M Key 2280 and 22110)1x M.2 E-Key (2230) |
|---|
| AC/DC input | ACAC+DC |
|---|
| Operating temperature | 0–50 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
