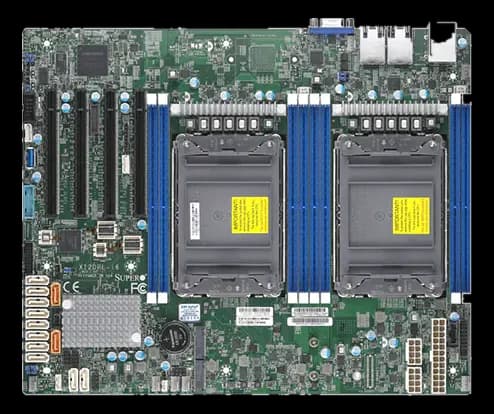

MBD-X12DPL-i6Server motherboard with Intel C621A chipset and LGA4189 socket
- Manufacturer
MBD-X12DPL-i6 is a server motherboard in ATX form factor: it takes Intel Xeon processors, 3rd Gen Scalable (Ice Lake-SP), with TDP up to 185 W. Memory reaches 2 TB, with error correction.
Expansion offers PCIe x16 slots. Networking reaches Gigabit. Video outputs cover VGA. Storage covers M.2 NVMe and SATA. Operating range is declared between 10 and 35 °C.
At a glance
- CPU generation: 3rd gen Scalable (Ice Lake-SP)
- Processor: 3rd Gen Intel® Xeon® Scalable processors; Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
- CPU TDP: 185 W
- TPM: Header (provision)
- CPU socket count: 2–2
Technical specifications
| BIOS | AMI UEFI |
|---|---|
| CPU generation | 3rd gen Scalable (Ice Lake-SP) |
| Processor | 3rd Gen Intel® Xeon® Scalable processors; Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s |
| CPU TDP | 185 W |
| TPM | Header (provision) |
| CPU socket count | 2–2 |
| CPU class | Intel Xeon |
| Chipset | C621A |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| CPU socket | LGA4189 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 2048–2048 GB |
| Memory | 8 DIMM slots; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s · 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM · 256GB; LRDIMM: 256GB; RDIMM: 256GB · 1.2V · Corrects single-bit errors; Detects double-bit errors (using ECC memory) |
| Storage | Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 4.0 x4; Form Factor: 2280/22110, 2280; Key: M-Key, M-Key |
|---|
| Video outputs | 1 VGA port(s) |
|---|
| Other I/O | 2 SATA DOM (Disk on Module) power connector support · 8x 4-pin fan headers (up to 8 fans); PWM fan speed control; Overheat LED indication |
|---|---|
| Ethernet ports | Dual LAN with Intel® i210 Gigabit Ethernet Controller · 2 RJ45 |
| Serial interfaces | 1 COM |
| Form factor | ATX |
|---|
| Expansion | 4 PCIe 4.0 x16 |
|---|
| Power input | ACPI Power Management |
|---|
| Dimensions | 310.6 × 254.0 |
|---|---|
| Other features | ASPEED AST2600 BMC · SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities · IPMICFG, IPMIView for Linux/Windows, SMCIPMITool · Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status · UID/remote UID LED; BMC/IPMI Heartbeat LED · UID, Node manager support, Dual cooling zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX power connector, ACPI power management, RoT, NCSI header |
| Storage temperature | -40–70 °C |
|---|---|
| Operating temperature | 10~35 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
