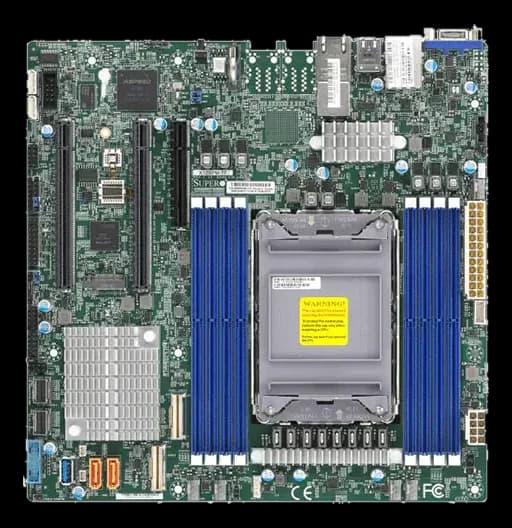

MBD-X12SPM-TFServer motherboard with Intel C621A chipset and LGA4189 socket
- Manufacturer
- Configurations
- 2 available configurations
MBD-X12SPM-TF is a server motherboard in microATX form factor: it takes Intel Xeon processors, 3rd Gen Scalable (Ice Lake-SP), with TDP up to 270 W. Memory reaches 2 TB, with error correction.
Expansion offers PCIe x16 and PCIe x8 slots. Networking reaches 10 Gigabit. Video outputs cover VGA. Storage covers M.2 NVMe, M.2 SATA and SATA. Operating range is declared between 0 and 60 °C.
At a glance
- CPU generation: 3rd gen Scalable (Ice Lake-SP)
- Processor: 3rd Gen Intel® Xeon® Scalable processors; Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
- CPU TDP: 270 W
- TPM: Header (provision)
- CPU cores: 40–40
Technical specifications
| BIOS | AMI UEFI · ACPI 6.0; RTC (Real Time Clock) Wakeup; SMBIOS 3.0 or later |
|---|---|
| CPU generation | 3rd gen Scalable (Ice Lake-SP) |
| Processor | 3rd Gen Intel® Xeon® Scalable processors; Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP |
| CPU TDP | 270 W |
| TPM | Header (provision) |
| CPU cores | 40–40 |
| CPU socket count | 1–1 |
| CPU class | Intel Xeon |
| Chipset | C621A |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| CPU socket | LGA4189 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 2048–2048 GB |
| Memory | 8 DIMM slots; Up to 2TB Intel® Optane™ Persistent Memory 200 Series; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s · ECC , DDR4 LRDIMM (3DS), RDIMM (3DS) · LRDIMM 3DS: 128GB, 256GB; LRDIMM: 64GB, 128GB; RDIMM: 8GB, 16GB, 32GB, 64GB · 1.2V · Corrects single-bit errors |
| Storage | Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · 10 SATA3 (6Gbps) port(s) · M.2 Interface: 1 SATA/PCIe 3.0 x4; Form Factor: 2280, 22110; Key: M-Key |
|---|
| Video outputs | 1 VGA port(s) |
|---|
| Other I/O | 2 SATA DOM (Disk on Module) power connector support · 5x 4-pin fan headers (up to 5 fans); System level control; PWM fan speed control; 5 fans with tachometer status monitoring; Pulse Width Modulated (PWM) fan connectors |
|---|---|
| Ethernet ports | Dual LAN with 10GBase-T with Intel® X550 · 2 RJ45 10GBase-T ports |
| Serial interfaces | 1 COM |
| Form factor | microATX |
|---|
| Expansion | 2 PCIe 4.0 x16, 1 PCIe 4.0 x8, 2 PCIe 4.0 x8 SimSAS connector |
|---|
| Power input | Power-on mode for AC power recovery, ACPI Power Management |
|---|
| Dimensions | 243.8 × 243.8 |
|---|---|
| Other features | ASPEED AST2600 BMC · SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities · VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 5 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V · UID/remote UID LED; Suspend static indicator LED; CPU/system overheat LED · WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management |
| Storage temperature | -20–60 °C |
|---|---|
| Operating temperature | 0~60 |
