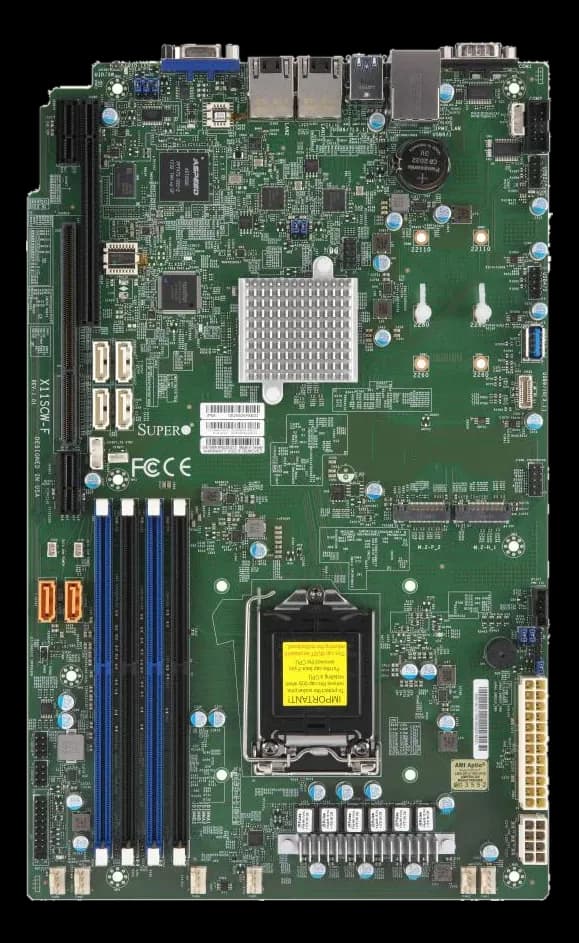

MBD-X11SCW-FWorkstation motherboard with Intel C246 chipset and LGA1151 socket
- Manufacturer
- Configurations
- 2 available configurations
MBD-X11SCW-F is a workstation motherboard in WIO form factor: it takes Intel Xeon, Core i9/i7/i5/i3, Pentium and Celeron processors, 8th Gen (Coffee Lake) and 9th Gen (Coffee Lake-R), with TDP up to 95 W. Memory reaches 128 GB, with error correction.
Expansion offers PCIe x16, PCIe x8, PCIe x4 and M.2 slots. Networking reaches Gigabit. Video outputs cover VGA. Storage covers M.2 NVMe, M.2 SATA, SATA DOM and SATA. Operating range is declared between 0 and 50 °C.
At a glance
- CPU generation: 8th gen (Coffee Lake)
- Processor: 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor; Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
- CPU TDP: 95 W
- TPM: TPM 2.0
- CPU cores: 8–8
Technical specifications
| BIOS | 256MB UEFI · ACPI 6.0; SMBIOS 2.7; Plug and Play (PnP); RTC (Real Time Clock) Wakeup; UEFI 2.7; USB Keyboard support; PCI 3.0 · 256Mb AMI BIOS®SPI Flash BIOS; ACPI 6.0 or later, PCI F/W 3.0 or later, Plug and Play (PnP), SPI dual speed support, riser card auto detection support, SMBIOS 2.7 or later, real time clock (RTC) wakeup |
|---|---|
| CPU generation | 8th gen (Coffee Lake)9th gen (Coffee Lake-R) |
| Processor | 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor; Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP |
| CPU TDP | 95 W |
| TPM | TPM 2.0 |
| CPU cores | 8–8 |
| CPU socket count | 1–1 |
| CPU threads | 16–16 |
| Watchdog | sì |
| CPU class | Intel Core i3/i5/i7/i9Intel XeonIntel Celeron/Pentium |
| Chipset | C246 |
| Graphics | 1 ASPEED AST2500 BMC port(s) · Graphics controller via ASpeed AST2500 BMC |
| CPU socket | LGA1151 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 128–128 GB |
| Memory | 4 DIMM slots; Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s · 2666/2400/2133 MT/s SDRAM 72-bit, · 4GB, 8GB, 16GB, 32GB · 1.2V · Corrects single-bit errors · Up to 128GB of unbuffered (UDMIM) DDR4 (288-pin) ECC memory with speeds of up to 2666MHz in four memory slots · Up to 32GB at 1.2V |
| Storage | Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · 6 SATA3 (6Gbps) port(s) · M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x4; Form Factor: 2260/2280/22110; Key: M-Key · Six (6) SATA 3.0 ports at 6Gb/s (I-SATA 2~7 with RAID 0, 1, 5, 10) · SATA DOM Power Connectors |
|---|
| Video outputs | 1 VGA port(s) · One (1) VGA connection on the back I/O panel |
|---|
| Other I/O | 6x 4-pin fan headers (up to 6 fans); Thermal control tachometer fan connectors; Fan speed control; 6 fans with tachometer status monitoring; Overheat LED indication |
|---|---|
| USB ports | 4 USB 3.1 Gen2 port(s) (2 via header; 2 rear) · Two (2) USB 2.0 ports on the back I/O panel (USB0/1); Two (2) USB 3.1 Gen 2 ports on the back I/O panel (USB6/7); Two (2) front accessible USB 2.0 headers with two (2) USB connections each (USB2/3, USB4/5); One (1) front accessible USB 3.1 Gen 2 header with two (2) USB connections (USB9/10); One (1) USB 3.1 Gen 1 Type-A header (USB8) |
| Ethernet ports | Dual LAN with Intel® Ethernet Controller I210-AT · 2 RJ45 · Intel i210 for Dual 1GbE BASE-T Ports; One (1) Dedicated IPMI LAN port located on the back I/O panel · Dedicated IPMI LAN Port |
| Serial interfaces | 1 COM; 1 COM · One (1) serial port on the back I/O panel (COM1); One (1) front accessible serial port header (COM2) · The UART provides legacy speeds with a baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support high-speed serial communication devices. |
| Form factor | WIO |
|---|
| Expansion | 1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot) · One (1) SMC-Proprietary WIO-L Slot (JSXB1A, JSXB1B, JSXB1C); One (1) SMC-Proprietary WIO-R Slot (JSXB2); One (1) M.2 slot for PCIe 3.0 x4 (Supports M-Key 2260 / 2280 / 22110 FF and Intel Optane Memory); One (1) M.2 slot for PCIe 3.0 x4 or SATA 3.0 (Supports M-Key 2260 / 2280 / 22110 FF and Intel Optane Memory) |
|---|
| Power input | ACPI Power Management · 24-pin ATX Power Supply Connector · 8-pin Power Connector · The X11SCW-F motherboard accommodates a 24-pin ATX power supply. [...] In addition, one 12V 8-pin power connection is also required to ensure adequate power to the system. |
|---|
| Dimensions | 330.2 × 203.2 |
|---|---|
| Other features | ASPEED AST2500 · SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog · IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support · VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages · UID/remote UID LED; CPU/system overheat LED · WOL, UID, Node manager support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management · ASpeed AST2500 BMC · Trusted Platform Module (TPM) support; SuperDoctor® 5; Watchdog, Non-maskable Interrupt (NMI), RoHs; Chassis intrusion header and detection; Server Platform Service |
| Storage temperature | -40–70 °C |
|---|---|
| Operating temperature | 0~50 |
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MBD-X11SCW-F-B |
| MBD-X11SCW-F-O |
