Industrial PCs with PICMG1.3 Backplane [PCIe/PCI]
GO-062-6-IPC13Box PC, wall or panel mount, on PICMG 1.3 passive backplane
- Manufacturer
GO-062-6 is a series of chassis for wall or panel mounting, on a PICMG 1.3 passive backplane. The frame is in pre-galvanized steel and measures 307 x 177 x 412 mm. For the drives the series provides 1 x 5.25”, 1 x 3.5” HDD, 1 x 3.5” FDD and 1 x 3.5” HDD optional.
It is not a catalog code: GOMA composes it for the application, so the series is configured on request and is not compared with a catalog item. Every unit goes through climatic burn in and leaves with its acceptance Test Report. The series datasheet is a guideline: the final configuration is agreed with GOMA.
At a glance
- Storage: 1 x 5.25”, 1 x 3.5” HDD, 1 x 3.5” FDD e 1 x 3.5” HDD opzione
- Architecture standard: PICMG 1.3
- Number of slots: 6
- Mounting: Wall Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 1 x 5.25”, 1 x 3.5” HDD, 1 x 3.5” FDD e 1 x 3.5” HDD opzione |
|---|
| Other I/O | Fronte: 2 x USB · Retro: Alloggiamento per 6 bracket full height, LPT e PS |
|---|
| Architecture standard | PICMG 1.3 |
|---|---|
| Number of slots | 6 |
| Dimensions | 307 x 177 x 412 mm |
|---|---|
| Mounting | Wall MountPanel Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |

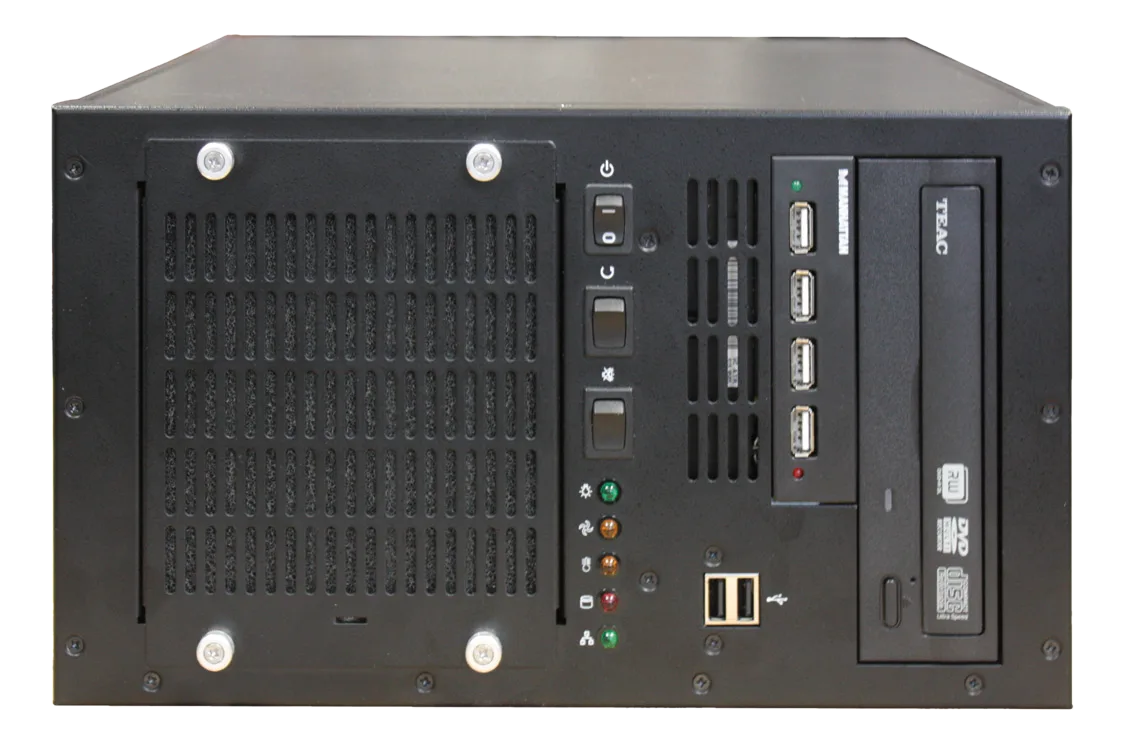

| Front panel buttons | Power On/Off, System Reset e Buzzer Reset |
| Other features | Barra di ritenzione schede ad altezza regolabile |
| Cooling | Fan (active) |
|---|---|
| Air filter | 1 filtro per l’aria rimovibile dal fronte lavabile |
| Humidity | 10–95 |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
