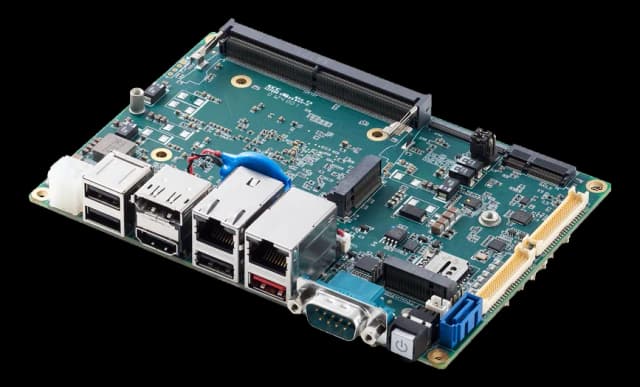

An EPIC (Embedded Platform for Industrial Computing) single board is a 165 x 115 mm motherboard designed for advanced embedded systems. It delivers robust processing capabilities with support for Intel Core and Intel Atom processors, ideal for applications requiring high performance and low power consumption. The board features versatile I/O options, Ethernet network connectivity, and PCI Express expansion slots, making it suitable for various industrial environments. It supports operating systems such as Linux, Windows, and RTOS.
  Ingrandisci Ingrandisci Ingrandisci Ingrandisci Ingrandisci Ingrandisci Ingrandisci

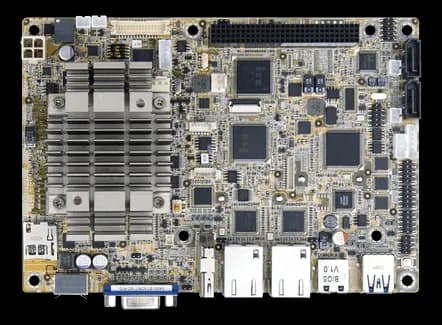

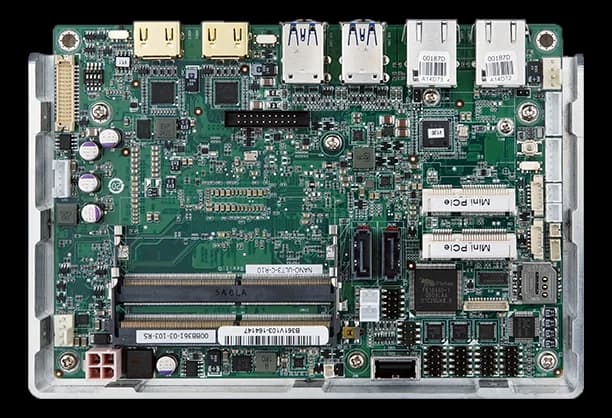

  NANO-ADL-P NANO-ULT5 NANO-ULT3 15-year long-term supply NANO-EHL NANO-AL NANO-BT-i1
15-year long-term supply

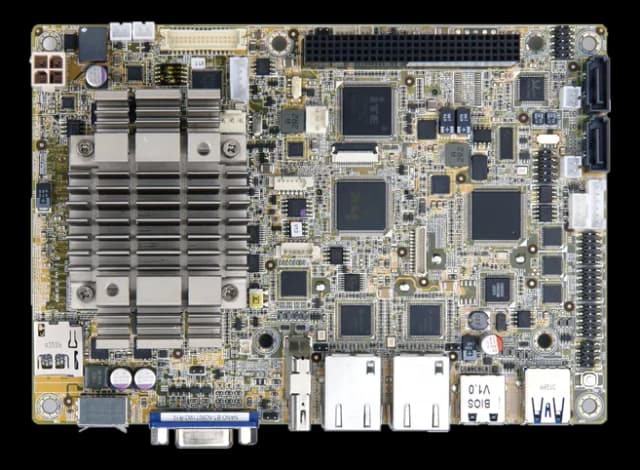

NANO-BTW2		 NANO-PV-D5251
*eol:30/6/18
stock available
Dimensions 165 x 115 mm
(4.53” x 6.5”)		 165 x 115 mm
(4.53” x 6.5”)		 165 x 115 mm
(4.53” x 6.5”)		 165 x 115 mm
(4.53” x 6.5”)		 165 x 115 mm
(4.53” x 6.5”)		 165 x 115 mm
(4.53” x 6.5”)		 165 x 115 mm
(4.53” x 6.5”)
Socket On board On board On board On board On board On board On board
CPU 12th Gen. Intel mobile Alder Lake-P 8th Gen. Intel Core i7/i5/i3, Intel Celeron 6th Gen. Intel Core i7/i5/i3, Intel Celeron Intel Elkhart Lake Processor / Intel Celeron Intel Atom / Celeron / Pentium Intel Atom E3845 Intel Atom D525
Chipset SoC SoC SoC SoC SoC SoC Intel ICH8M
Memory Up to 16GB LPDDR4 Up to 32GB DDR4 Up to 32GB DDR4 Up to 16GB LPDDR4 Up to 8GB DDR3L Up to 8GB DDR3L Up to 4GB DDR3
Display   – – – – VGA VGA
2x HDMI HDMI HDMI 1x HDMI HDMI HDMI HDMI
  LVDS LVDS – LVDS LVDS LVDS
1 x iDPM – – 1 x iDPM – – –
1 x DP 1 x DP 1 x iDP 1 x DP 1 x iDP – –
Ethernet 2 x Intel I225V/I226V 2.5GbE controller 1 x Intel I219-LM PHY
1 x Intel I211-AT GbE		 1 x Intel I219-LM PHY
1 x Intel I211-AT GbE		 2x Intel I225-V/I226-V 2.5GbE controller 2 x Intel I210-IT/I211-AT PCIe controller 1 x Intel I210-AT
1 x Intel I211-AT		 2 x Realtek RTL8111E
(1 with ASF 2.0)
I/O 4 x RS-232 1 x RS-232 2 x RS-232 4 x RS-232 4 x RS-232 3 x RS-232 4 x RS-232
2 x RS-232/422/485 1 x RS-232 / 422 / 485 1 x RS-232 / 422 / 485 2 x RS-232/422/485 2 x RS-232 / 422 / 485 1 x RS-422 / 485 1 x RS-232 / 422 / 485
4 x USB 3.2 4 x USB 3.2 4 x USB 3.2 2 x USB 3.2 2 x USB 3.2 1 x USB 3.0 –
4 x USB 2.0 – 2 x USB 2.0 4 x USB 2.0 4 x USB 2.0 3 x USB 2.0 8 x USB 2.0
  – –   1 x PS/2 1 x PS/2 –
  – –   – – 1 x LPT
Storage 1 x SATA 6Gb/s 2 x SATA 6G/s
1 x M.2 slot with 2280 M key		 2 x SATA 6G/s 1 x SATA 6Gb/s 2 x SATA 6G/s 1 x M.2 (B Key) (SATA only) 2 x SATA 3Gb/s 2 x SATA 3Gb/s
Audio 1 x iAUDIO HDA HDA 1 x iAUDIO HDA HDA HDA
Digital I/O 12-bit digital I/O 8-bit digital I/O
(4-bit input / 4-bit output)		 8-bit digital I/O
(4-bit input / 4-bit output)		 12-bit digital I/O 8-bit digital I/O
(4-bit input / 4-bit output)		 8-bit digital I/O
(4-bit input / 4-bit output)		 8-bit digital I/O
(4-bit input / 4-bit output)
Watchdog Timer ✓ ✓ ✓ ✓ ✓ ✓ ✓
Op. Temp. 0°C to +60°C -20°C to +60°C -20°C to +60°C 0°C to +60°C -20°C to +70°C -20°C to +60°C -10°C to +60°C
Expansion Slot 1 x M.2 A Key for Wi-Fi & BT 2230
1 x M.2 B-key 3042/2280
1 x On-board SIM card socket
1 x PCIe x4 slot		 1 x Full-size PCIe Mini slot
1 x M.2 slot
1 x SIM card		 1 x Full-size PCIe
1 x Half-size PCIe		 1 x M.2 B Key 2242/2280
1 x M.2 A Key 2230
1 x PCIe x4 slot		 1 x Full/Half-size PCIe Mini slot 1 x PCIe
1 x PCI/104		 1 x PCIe Mini
1 x PCI/104
Ordering Information NANO-ADL-P-CC-R10
NANO-ADL-P-i3C-R10
NANO-ADL-P-i5C-R10
NANO-ADL-P-i7C-R10		 NANO-ULT5-i7-R10
NANO-ULT5-i5-R10
NANO-ULT5-i3-R10
NANO-ULT5-C-R10		 NANO-ULT3-i7-R10
NANO-ULT3-i5-R10
NANO-ULT3-i3-R10
NANO-ULT3-C-R10		 NANO-EHL-J6412C-R10 NANO-AL-J2-R10
NANO-AL-N2-R10
NANO-AL-N1-R10
NANO-AL-E3W2-R10
NANO-AL-E2W2-R10
NANO-AL-E1W2-R10		 NANO-BT-i1-J19001-R11
NANO-BT-i1-N29301-R11
*eol:30/6/20
NANO-BT-i1-N28071-R11		 NANO-PV-D5251-R10
