PM-BTPC/104-Plus SBC with on-board Intel Atom or Celeron SoC and 5V DC input
- Manufacturer
- Configurations
- 2 available configurations

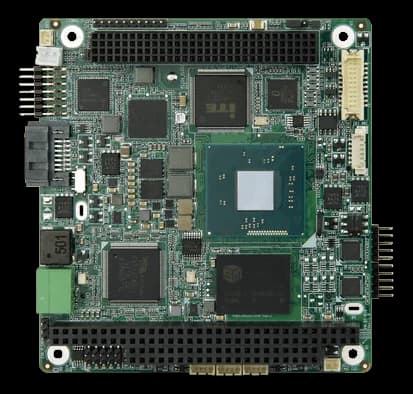

PM-BT is an embedded board in the PC/104 form factor, 96 × 90 mm and 0.12 kg, with an Intel SoC soldered on board and one 204-pin DDR3L SO-DIMM at 1333/1066 MT/s. It stacks onto expansion modules already in the field instead of imposing a new backplane, and works in control systems where the mechanical volume is already defined.
Power comes from a single 5V DC input and distributes the 12V lines for fan, LVDS and PCI-104 plus, with 3/5V jumper and selectable AT/ATX mode. On the software side, IEI One Key Recovery handles operating system backup and restore. CE and FCC certifications.
Two configurations available: PM-BT-N28071-R10 with Intel Celeron N2807 at 1.58 GHz and memory up to 4 GB, PM-BT-J19001-R10 with Intel Celeron J1900 at 2 GHz.
At a glance
- PC/104-Plus with ISA and PCI signals
- 5V DC input
- Dual display from VGA and LVDS
- SO-DIMM DDR3L up to 8 GB (J1900)
Technical specifications
| Processor | Intel® Atom™ E3825 on-board SoC (1.33GHz(optional)Intel® Celeron® N2807 on-board SoC (1.58GHz(optional)Intel® Celeron® J1900 on-board SoC (2GHz(optional)Intel® Atom™ E3845 on-board SoC (1.91GHz(optional) |
|---|
| Memory | 8GB (J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)SODIMM DDR3L 204-pin 1333/1066 MT/s |
|---|
| Video outputs | 1× LVDS :18/24-bit single-channel (2x10 pin) · 1x VGA |
|---|
| Ethernet ports | 1× Intel® I210 |
|---|
| Form factor | PC/104-Plus |
|---|---|
| Bus interface | » PC/104-Plus (ISA and PCI signal) function support |
| Power input | » 12V for PCI-104 plus (1x3 pin, P=2.0)» 5V for PCI-104 plus (1x3 pin, P=2.0)Support AT/ATX mode12V for fan, LVDS and PCI-104 plus3/5V jumper for PCI-104 plus» 5V DC input solution |
|---|
| Dimensions | 96 X 90 |
|---|---|
| Weight | 0.12 kg |
| Operating temperature | -20–60 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
