CT-DML013.5" industrial SBC with Intel Core Ultra Series 1, Meteor Lake-U processors
- Manufacturer
- Configurations
- 2 available configurations

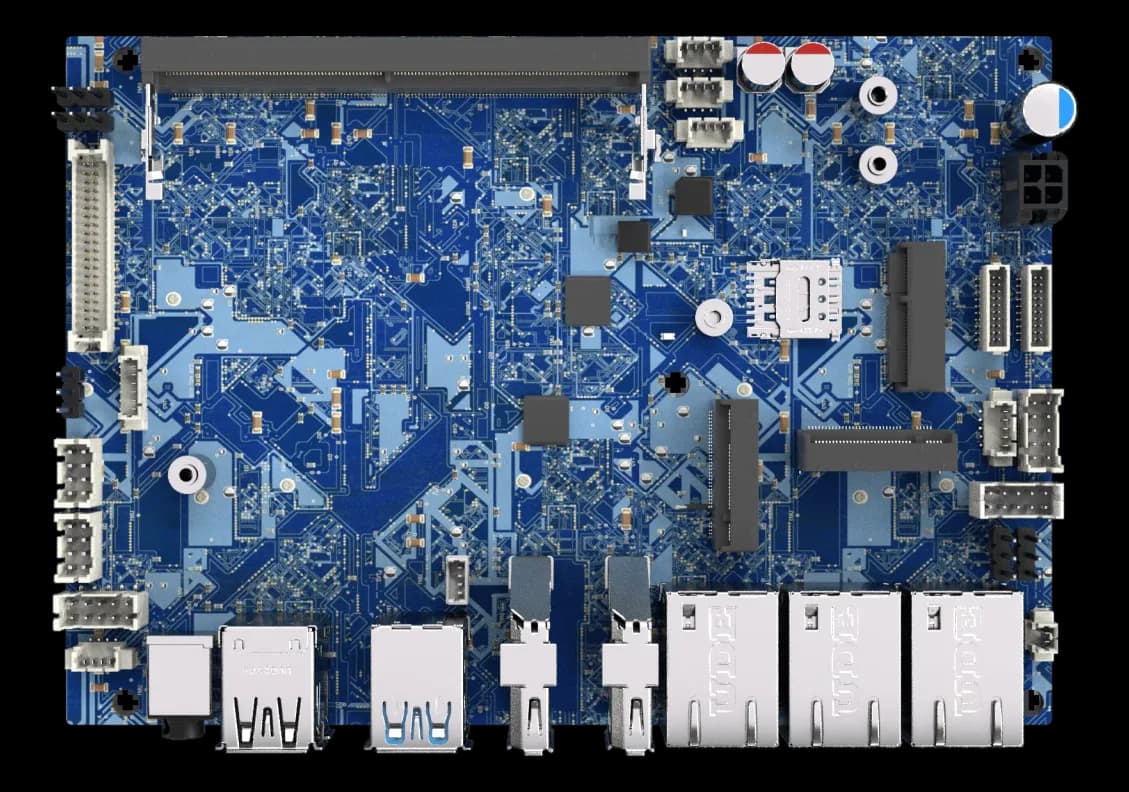

CT-DML01 is an embedded motherboard in 3.5" format (146 x 102 mm) built around Intel Core Ultra Series 1, Meteor Lake-U processors with 15W TDP. It is a board to be integrated into the customer's enclosure, where space is set by the form factor and not by the mechanical design.
Expansion is entirely on M.2: one M Key 2280 PCIe x4 Gen 4/SATA with auto-detect for storage, one B Key 3042/3052 for 4G/5G modules served by two nano SIM sockets, one E Key 2230 for Wi-Fi and Bluetooth. The power supply integrates over-voltage, over-current, reverse polarity and power line transient protection.
Available configurations: CT-DML01-125U-KIT with Intel Core Ultra 5 125U and CT-DML01-155U-KIT with Intel Core Ultra 7 155U, both with cable & heatsink kit, plus the CT-DML01 Ultra 5 and CT-DML01-Ultra 7 variants. The 150 W AC/DC 20V/7.5A power adapter is available on request.
At a glance
- DDR5 SO-DIMM up to 48 GB
- DC input 12~24V
- dTPM 2.0 and fTPM 2.0 supported
- Programmable watchdog 1~255 seconds
- COM1 switchable RS232/422/485
Technical specifications
| Processor | Meteor Lake-UIntel® Core™ Ultra 5 125U 12M Cache(optional)Intel® Core™ Ultra 7 155U 12M Cache(optional) |
|---|
| Memory | 1× SODIMM DDR5 262-pin 5600 MT/s |
|---|
| Video outputs | 1× LVDS up to 1920x1200 @60Hz, dual channel · Up to 3840 x 1260 @60Hz, ideal for high-quality embedded displays. |
|---|
| Digital I/O | 1× GPIO 8-pin header (4 In/4 Out, non-isolated) non-isolation |
|---|---|
| Connectors | Micro fit pitch 3.0 2x2 pin |
| Audio | 1x Line-Out +MIC |
| Ethernet ports | GbE1: Intel i226-LM 2.5GbE LAN PXE SupportGbE2: Intel i226-V 2.5GbE LAN PXE SupportGbE3: Intel i226-V 2.5GbE LAN PXE Support |
| Serial interfaces | COM1: RS232/422/485 |
| USB ports | 2× USB 3.2 Gen 1 (5 Gbps) |
| Wireless | 4G/LTE5GBluetoothWi-Fi |
|---|
| Form factor | 3.5" SBC |
|---|
| Supply voltage | AT, ATXOptional AC/DC 20V/7.5A, 150W |
|---|
| Dimensions | 146× 102mm |
|---|
| Operating temperature | 0–60 °C |
|---|
| Certifications | CEFCCICES-003UKCA |
|---|
| Operating systems | LinuxWindows(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
