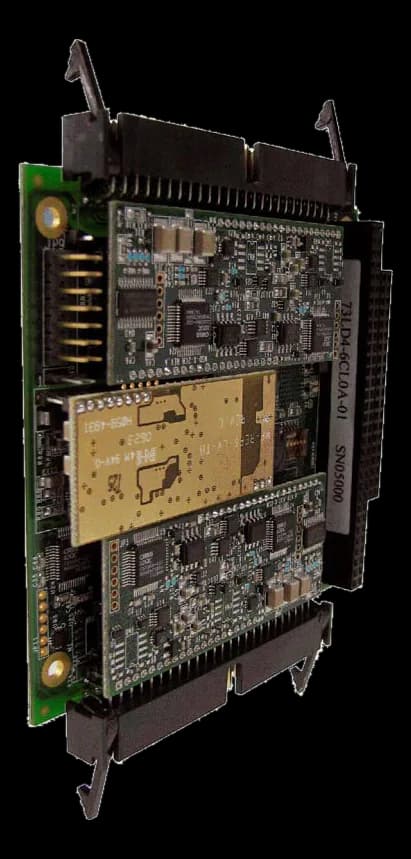

73LD4Six isolated channel module with 16-bit resolution and continuous BIT
- Manufacturer
73LD4 is a six-channel conversion module, with separate inputs and transformer isolation, used in test benches and angular measurement systems.
Bandwidth is programmable and the reference frequency runs from 360 Hz to 10 kHz, with programmable reference excitation available as an option. The module self-calibrates without being removed, integrates a watchdog timer and soft reset, and provides two banks of 8 TTL digital I/O.
At a glance
- Form factor: PC/104
- Power input: +5 VDC
Technical specifications
| Digital I/O | Two banks of 8 (16 total) TTL Digital I/O – input/output programmable for each bank |
|---|
| Form factor | PC/104 |
|---|
| Power input | +5 VDC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
