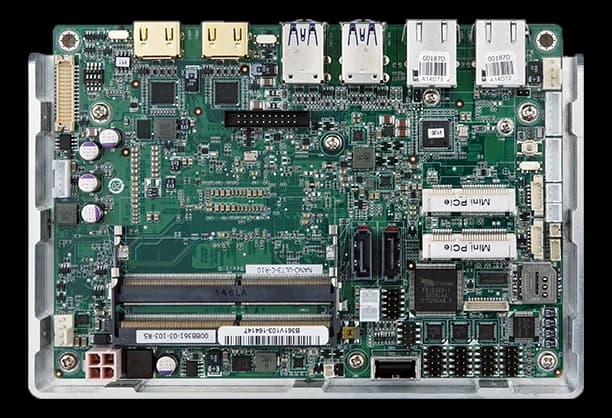

NANO-ULT3EPIC form factor SBC with onboard 6th generation Intel Core ULT processor
- Manufacturer
- Configurations
- 3 available configurations
NANO-ULT3 is an EPIC SBC with onboard 6th generation Intel ULT SoC, dual Intel Gigabit LAN and three independent displays.
At a glance
- Up to 3.4 GHz with i7-6600U
- Dual-channel DDR4 SO-DIMM up to 32 GB
- 12 V only DC input
- Full-size PCIe Mini with SIM holder
- Dual Intel GbE, LAN1 with AMT 11.0
Technical specifications
| Processor | 6th generation Intel® mobile ULT on-board SoCIntel® Core™ i7-6600U (up to 3.4GHz(optional)Intel® Celeron® 3955U (up to 2.0GHz(optional)Intel® Celeron® 3855U (up to 1.6GHz(optional)Intel® Core™ i5-6300U (up to 3.0GHz(optional)Intel® Core™ i3-6100U (up to 2.3GHz(optional) |
|---|
| Memory | DDR4 260-pin 2133/1866 MT/s |
|---|
| SATA ports | 2× SATA :6Gb/s with 5V SATA power connector(no RAID) |
|---|
| Video outputs | 1× iDP :for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) 2x HDMI 1x LVDS |
|---|
| Keyboard & pointing device | 1× PS/2 :1x6 pin |
|---|---|
| Other I/O | COM, USB 3.0, SATA 6Gb/s, mSATA, eMMC 5.0 and audio support |
| Audio | Description: Realtek ALC662 HD codec |
| Ethernet ports | LAN2: Intel® I211-AT PCIe GbE controller · 2 x LAN :LAN1: Intel® I219-LM PHY with Intel® AMT 11.0 supported |
| Serial interfaces | 1× Internal RS-232/422/485 :2x5 pin, p=2.0 2x Internal RS-232 :2x5 pin, p=2.0 |
| USB ports | 3× Internal USB 2.0 :1 X Type A, 2 X 2 X 4 pin, p=2.0 4 x External USB 3.2 Gen1x1 |
| Form factor | EPIC |
|---|
| Power input | 1× Internal power connector (2x2 pin) |
|---|
| Dimensions | 115 X 165 |
|---|---|
| Weight | 0.35 kg |
| Operating temperature | -20–60 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NANO-ULT3-i3-R10 |
| NANO-ULT3-i5-R10 |
| NANO-ULT3-i7-R10 |
