CMX-SLXSmall Form Factor SBC on PCI/104-Express with 6th Gen Intel Core Skylake-H
- Manufacturer
- Configurations
- 2 available configurations

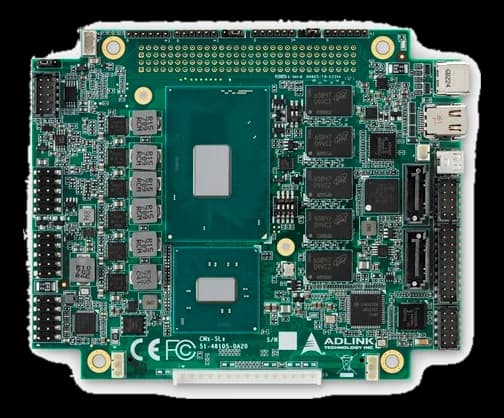

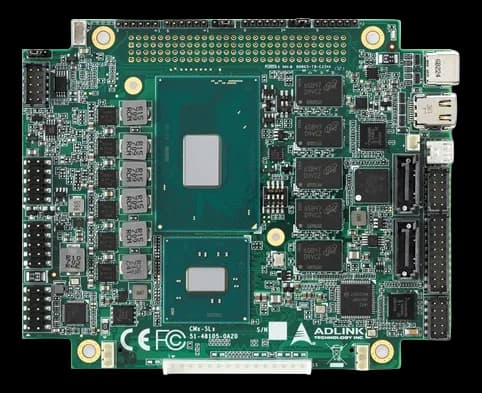

CMX-SLX is a Small Form Factor SBC based on 6th Gen Intel Core Skylake-H processors with 8 GB of soldered onboard DDR4 ECC memory and Intel Generation 9 LP graphics. It uses a PCI/104-Express Type 1 stack-down bus, measures 117.4 × 96 mm and provides 2× GbE LAN, with 0~60 or −40~85 °C operating options.
At a glance
- 8 GB soldered onboard DDR4 ECC
- Intel Generation 9 LP graphics
- PCI/104-Express Type 1 stack-down bus
- Form factor 117.4 × 96 mm
- 2× GbE LAN
Technical specifications
| Processor | 6th Gen. Intel® Core™ i3 (formerly "Skylake-H")Intel® Core™ i3-6100E 2.7GHz (no Turbo)(optional)Intel® Core™ i3-6102E 1.9GHz (no Turbo)(optional)Intel® Core™ i7-6822EQ 2.0/2.8GHz (Turbo)(optional)Intel® Xeon® E3-1505L v5 2.0/2.8GHz (Turbo)(optional) |
|---|---|
| Graphics | GPU Feature Support Intel® Generation 9 LP Graphics Core Architecture |
| Memory | SOLDERED DDR4 1866/2133 MT/s · 8 GB of soldered ECC DDR4 memory at 1866/2133 · Up to 16GB DDR4 w/ECC |
|---|
| SATA ports | 2× SATA 6Gb/s ports |
|---|
| Video outputs | 3× DDI channels, 1× micro HDMI, 1× mini DP and 1× 18/24 bit single channel LVDSDDI1/2 supporting DisplayPort/HDMI |
|---|
| Audio | available on “DisplayPort” and “HDMI” ports · Intel® HD Audio integrated in chipset |
|---|---|
| Ethernet ports | 2× GbE LAN |
| Serial interfaces | 2× COM ports |
| USB ports | 1× USB 3.1 and 6× USB 2.0 (2× USB 2.0 to PCIe/104 bus connector) |
| Form factor | PCI/104-Express |
|---|---|
| Bus interface | PCI/104-Express Type 1 (stack-down) |
| Supply voltage | ATX = 5V±5% / 5Vsb ±5% or AT = 5V±5%Depending on customer application and processor, “5VDC single voltage supply” variant can be offered.(optional) |
|---|
| Dimensions | 117.4 mm x 96 mm |
|---|
| Operating temperature | -40–85 °C0–60 °C |
|---|
| Operating systems | LinuxQNXVxWorksWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
