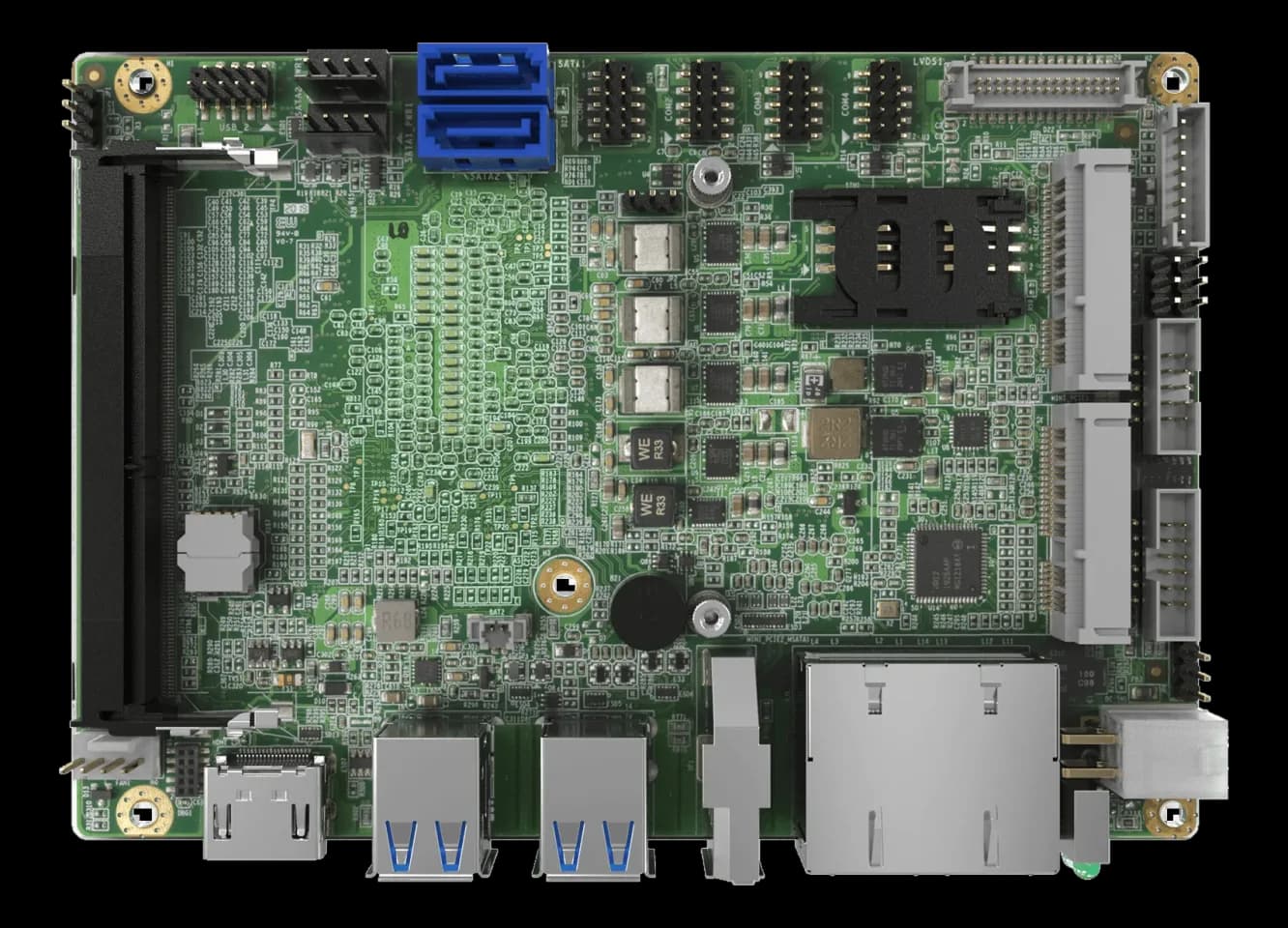

CT-DWL01Industrial 3.5" SBC with 8th generation Intel Core processors
- Manufacturer
- Configurations
- 4 available configurations
CT-DWL01 is a 3.5" industrial SBC motherboard built on the Intel WL-UE platform at 15 W TDP, with 8th generation Intel Core processors. It supports up to 32 GB DDR4 2400 SO-DIMM memory, dual Intel GbE LAN and triple independent display, with Intel UHD 620 graphics on Core series processors. The board features AT/ATX 12 V DC power input, integrated TPM 2.0 and an operating temperature range of −40~70 °C. Premio declares CE and FCC Class A certifications.
At a glance
- Up to 32 GB DDR4 2400 SO-DIMM
- AT/ATX 12 V DC power input
- Integrated TPM 2.0
- Intel UHD 620 graphics, Core series
- CE and FCC Class A certifications
Technical specifications
| Processor | Support 8th Gen. Intel® WL-UE (15W TDP) · Support 8th Gen. Intel® Core™ Mobile U Processor & Intel® Celeron® ProcessorIntel® Celeron® 4305UE 2M Cache(optional)Intel® Core™ i3-8145UE 4M Cache(optional)Intel® Core™ i5-8365UE 6M Cache(optional)Intel® Core™ i7-8665UE 8M Cache(optional) |
|---|---|
| Graphics | Intel® UHD Graphics 610 for Celeron series · Intel® UHD Graphics 620 for Core series |
| Memory | 1× SODIMM DDR4 260-pin 2400 MT/s |
|---|
| SATA ports | 2× SATA 6.0Gb/s |
|---|
| Video outputs | 1× Dual-channel, up to 24-bit LVDS optional 1× eDP via internal connector1× HDMI (Optional) support resolution 1920× 1200 |
|---|
| Digital I/O | 2× 4-bit DIO (4-in/4-out) via a PH2.0 2× 10 pin header, (PIN1\_VCC, PIN2\_GND) |
|---|---|
| Connectors | 4-pin CPU P4 connector |
| Other I/O | 1× RTC battery by cable |
| Audio | 1x Front panel audio |
| Ethernet ports | GbE2: Intel® I210-IT (Support Wake-on-LAN and PXE)GbE1: Intel® I219LM (Support Wake-on-LAN and PXE) |
| Serial interfaces | 4× RS-232-/422/485 Internal 2.0PH headers |
| USB ports | 4× USB 3.2 Gen 2 (10Gbps) |
| Form factor | 3.5" SBC |
|---|
| Supply voltage | AT/ATX 12V DC Input |
|---|
| Dimensions | 146× 102mm |
|---|
| Operating temperature | -40–70 °C |
|---|
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| CT-DWL01-4305UE |
| CT-DWL01-8145UE |
| CT-DWL01-8365UE |
| CT-DWL01-8665UE |
