WAFER-JL3.5" SBC with Intel Celeron N5105 Jasper Lake SoC and triple 2.5GbE
- Manufacturer
- Configurations
- 1 available configurations

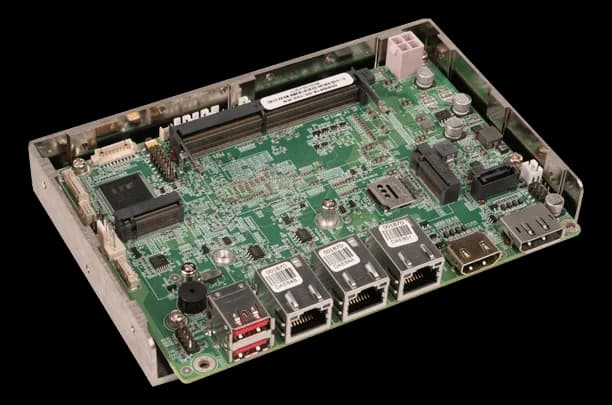

WAFER-JL is a 3.5" embedded board measuring 115 x 165 mm and weighing 250 g, designed for AGVs, AMRs and small cabinets in manufacturing environments. The power supply works in AT or ATX mode, selectable via an on-board switch.
Memory is on a 260-pin DDR4 SO-DIMM at 2933 MT/s, up to 16 GB. Expansion is provided by an M.2 A key 2230 with PCIe Gen3 x1, a SATA port and internal RS-232 serial interfaces with 12-bit digital I/O for sensors and actuators. Cooling starts from the heatspreader included in the packing list, with heatsink or cooler modules available for high-temperature environments.
In the catalogue the board can be ordered in the WAFER-JL-N5105-R10 configuration.
At a glance
- Two USB 3.2 Gen 2 (10Gb/s)
- M.2 B key 3042 with SIM slot
- 10 W TDP of on-board SoC
- CE and FCC compliance
Technical specifications
| Processor | Intel® Celeron® N5105 quad-core Jasper Lake |
|---|---|
| Graphics | Intel® UHD Graphics of 11th Gen processor at 800 MHz |
| Memory | SODIMM DDR4 260-pin 2933 MT/s |
|---|
| SATA ports | 1× SATA 6Gb/s |
|---|
| Video outputs | 1× HDMI™ 1.4b (4096× 2160 @30Hz) |
|---|
| Digital I/O | 1× DIO: 1× 12-bit digital I/O (2x7 pin) |
|---|---|
| Audio | 1× HD Audio: 1× iAudio, support IEI AC-KIT-888S Audio Module (2× 5 pin) |
| Ethernet ports | LAN1: Intel® I225V 2.5GbE controllerLAN3: Intel® I225V 2.5GbE controllerLAN2: Intel® I225V 2.5GbE controller |
| Serial interfaces | 2× RS-232/422/485 |
| USB ports | 2x USB 3.2 Gen 2 (10Gb/s) |
| Wireless | BluetoothWi-Fi |
|---|
| Form factor | 3.5" SBC |
|---|
| Power input | +12V DC input power (AT/ATX mode) · AT/ATX switch |
|---|
| Dimensions | 115mm x 165mm |
|---|---|
| Weight | 0.25 kg |
| Operating temperature | 0–60 °C |
|---|
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
