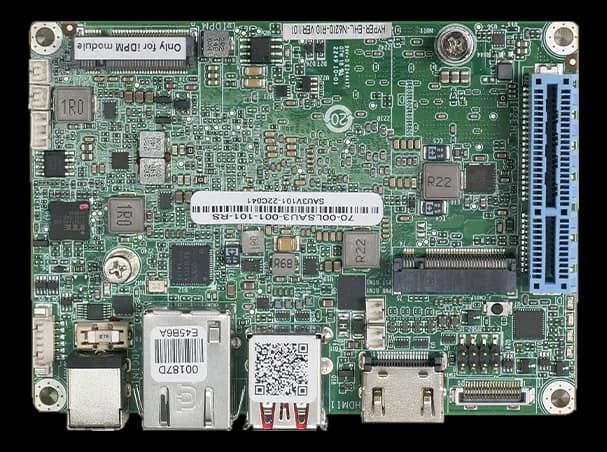

HYPER-EHL-J6412B-R11Fanless Pico-ITX SBC with on-board Intel Celeron J6412 SoC
- Manufacturer
HYPER-EHL-J6412B-R11 is a 100 x 72 mm Pico-ITX single board computer with a soldered on-board SoC and fanless cooling. IEI targets it at integrations where space is the primary constraint: AMRs and AGVs, delivery robots, electric vehicle charging stations, medical care systems.
Its distinguishing feature is the LPDDR4x memory soldered onto the board rather than socketed: 4 GB by default, up to 8 GB, prioritising mechanical robustness on mobile platforms over module expandability. Power follows the ATX/AT scheme, with ErP/EuP compliance, and the footprint remains that of a 2.5" board.
At a glance
- Quad-core Intel Celeron J6412 SoC
- 2.5GbE LAN Intel I225V/I226V
- PCIe Gen3 x4 slot for riser card
- HDMI output up to 4096x2160
- M.2 M key storage PCIe Gen3 x2
Technical specifications
| Processor | Intel® Atom™ x6000 series / Pentium® / Celeron® (Elkhart Lake platform) · Intel® Celeron® J6412/N6210 processor |
|---|
| Memory | up to 8GB SOLDERED LPDDR4x |
|---|
| SATA ports | 1× SATA : iSATA 6Gb/s |
|---|
| Video outputs | 1x HDMI : up to 4096x2160 @ 30Hz1× iDPM : support iEi eDP/ LVDS/ VGA module |
|---|
| Ethernet ports | Intel® I225V/I226V 2.5GbE Ethernet controller · Support Intel® I225V 2.5GbE Ethernet controller |
|---|---|
| Serial interfaces | 1x Internal RS-232/422/485 |
| USB ports | 2× USB 3.2 Gen 2, 2× USB 2.0, with up to 10Gb/s transfer speed |
| Form factor | Pico-ITX |
|---|
| Power input | ATX/AT power supply |
|---|
| Dimensions | 100mm x 72mm |
|---|---|
| Weight | 0.6 kg |
| Operating temperature | 0–60 °C |
|---|
| Certifications | RoHS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
