CM1-BT1Extreme Rugged PC/104 SBC with Intel Atom E3815 System-on-Chip
- Manufacturer
- Configurations
- 2 available configurations

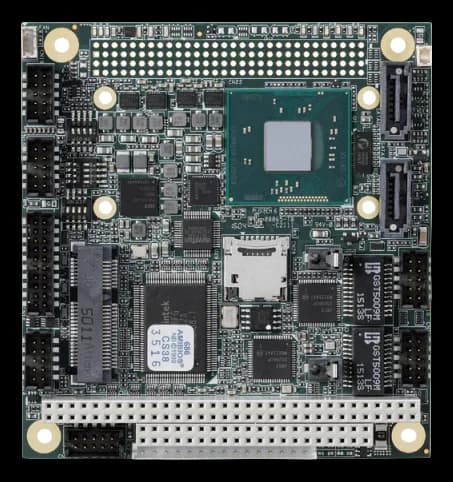

CM1-BT1 is a single board computer in 90 x 96 mm format built around a 5 W Intel Atom SoC, with AMI EFI BIOS and CMOS backup on 8 MB SPI. It plugs into existing PC/104 stacks: instrumentation, machine control and refresh of equipment already wired on the ISA bus.
What sets it apart is the Extreme Rugged qualification, verified with HALT on thermal stress, vibration stress, thermal shock and combined testing, in addition to the IEC 60068-2-64, IEC-60068-2-27 and MIL-STD-202F tests. On board, the SEMA controller handles voltage and current monitoring, power sequencing, watchdog timer, fan control and dual BIOS failsafe: diagnostics on the board, not delegated to the application.
Two configurations: CM1-BT1-E3815, with heat spreader and 0~60 °C operating temperature, and CM1-BT1-E3815/ETT, with screening for −40~85 °C.
At a glance
- Intel Atom E3815 CPU at 1.46 GHz
- Two Intel i210 Ethernet controllers
- PC/104 Version 2.6 form factor
- VGA and LVDS video outputs
Technical specifications
| Processor | Single-core Intel Atom® SoC Atom® E3815 (1C) |
|---|---|
| Graphics | 7th generation Intel® graphics core architecture with four execution units |
| Memory | SODIMM DDR3L 1066/1333 MT/s · Up to 4GB DDR3L at 1333MHz · a DDR3L SO-DIMM socket |
|---|
| SATA ports | up to 2× SATA 3 Gb/s ports · 1x SATA 3Gb/s |
|---|
| Video outputs | Single/dual channel 18/24-bit LVDS from eDP · Supports VGA and LVDS · one LVDS port |
|---|
| Digital I/O | 8× GPIO |
|---|---|
| Audio | Intel® HD Audio integrated in SoC · ALC888 · one dedicated HD-Audio panel connector |
| Ethernet ports | 2× Intel® i210 (MAC/PHY) Ehternet controller · up to two Gigabit Ethernet ports |
| Serial interfaces | 2× RS-232/422 (with full handshake) + 2× RS-232/422 (TX,RX,CTS,RTS only) |
| USB ports | 3× USB 2.0 ports |
| Form factor | PC/104 |
|---|---|
| Bus interface | PC/104 (ISA) |
| Power input | ATX = 5V±5% / 5Vsb ±5% or AT = 5V±5% |
|---|
| Dimensions | 90 mm x 96 mm |
|---|
| Operating temperature | 0–60 °C-40–85 °C |
|---|
| Operating systems | VxWorksWindowsLinuxQNX(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| CM1-BT1-E3815 |
| CM1-BT1-E3815/ETT |
