CT-NR1011.8" Femto-ITX SBC with AMD Ryzen Embedded R1606G and Radeon Vega 3 graphics
- Manufacturer

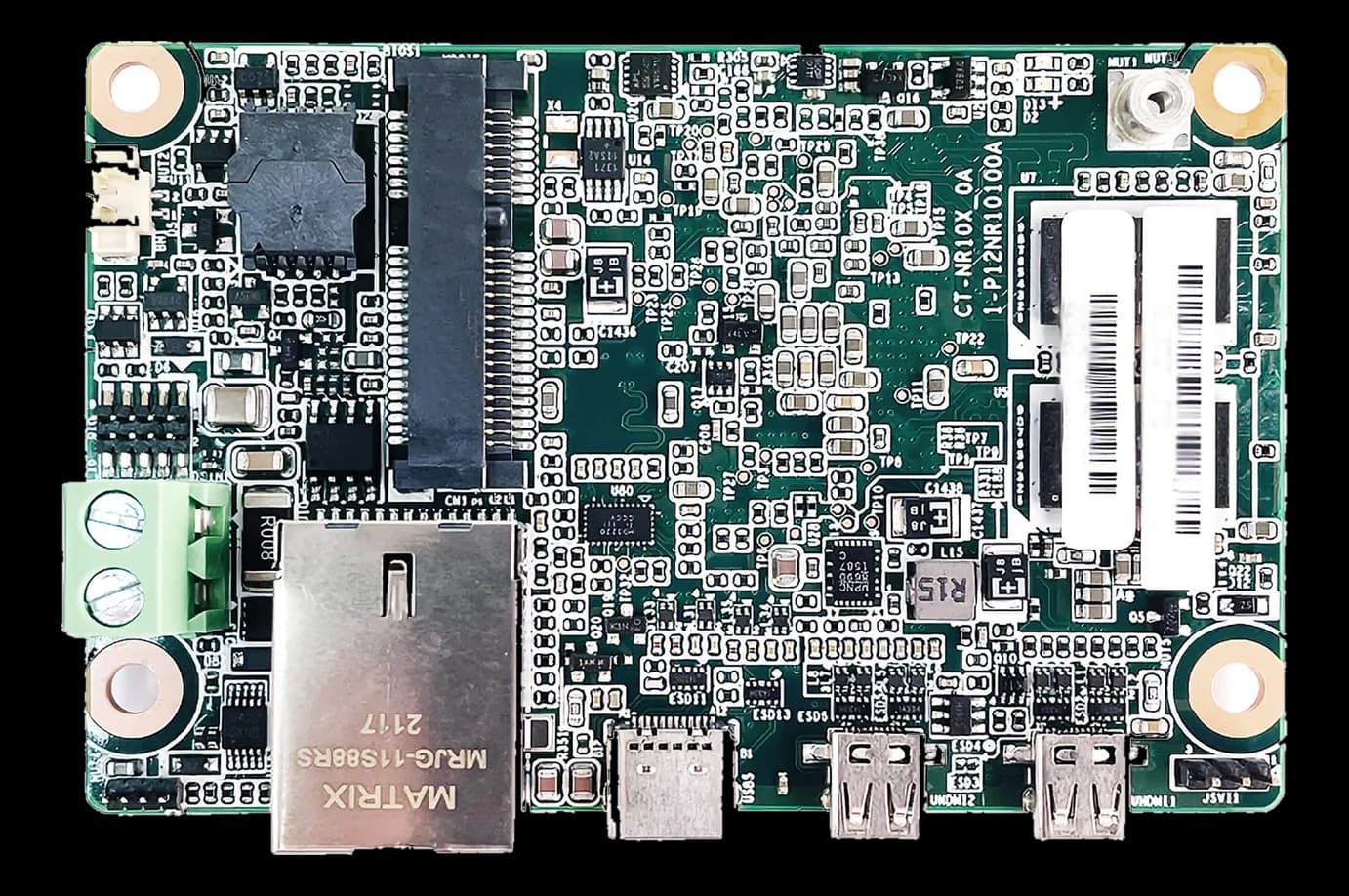

The CT-NR101-R1606G is a 1.8" Femto-ITX single board computer measuring 84 x 55 mm, built around the AMD Ryzen Embedded R1606G with Radeon Vega 3 graphics and clock speeds up to 3.5 GHz. Memory consists of 4 GB DDR4-2400 soldered on board, while storage is provided by eMMC up to 64 GB. Display output is handled by two Micro HDMI 1.4 ports supporting up to 4096x2160, and networking relies on an Intel i210 GbE controller with Wake-on-LAN and PXE. The board runs on a 12 VDC supply and is designed to MIL-STD-810H for shock and vibration.
At a glance
- Up to 3.5 GHz, Ryzen Embedded R1606G
- 2x Micro HDMI 1.4 up to 4096x2160
- GbE Intel i210 with Wake-on-LAN and PXE
- Designed for MIL-STD-810H shock and vibration
- eMMC storage up to 64 GB
Technical specifications
| Processor | AMD Ryzen™ Embedded R1606G with Radeon™ Vega 3 Graphics · Support AMD Ryzen™ Embedded R1000 Series |
|---|---|
| Graphics | AMD RadeonTM Vega 3 (R1606G) |
| Memory | On board DDR4-2400 Single-Channel Memory 4GB |
|---|
| Video outputs | 2× Independent display (1× playback)2x Micro HDMI 1.4, resolution up to 4096x2160, 24Hz |
|---|
| Digital I/O | 2× 5-pin header (4 In/4 Out) |
|---|---|
| Connectors | 2-pin Terminal Block Pitch=5.0mm |
| Other I/O | 1× RTC battery cable |
| Ethernet ports | GbE1: Intel i210 (Support Wake-on-LAN and PXE) · 1x RJ45 |
| USB ports | 1× USB 2.0 (4-pin header, internal)1x USB 3.2 Gen 1 Type C (5V/3A) |
| Supply voltage | DC 12V |
|---|
| Dimensions | 84 mm x 55 mm |
|---|
| Operating temperature | 0–60 °C |
|---|
| Certifications | MIL-STD-810 |
|---|
| Operating systems | LinuxWindows(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
