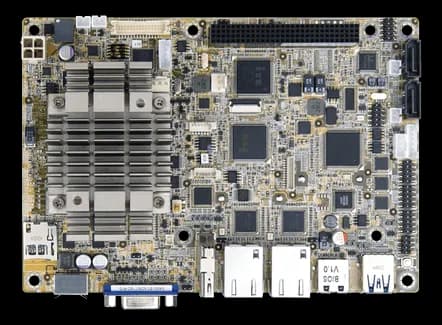

NANO-BT-I1EPIC small form factor SBC with Intel Celeron on-board SoC Bay Trail
- Manufacturer
- Configurations
- 3 available configurations
NANO-BT-i1 is an embedded board in EPIC format for integration into fanless systems: machine automation, kiosks and semi-outdoor equipment, where fixed footprint and low power consumption matter.
The full-size PCIe Mini slot, with mSATA co-lay on the SATA 2 port, and the PCI-104 connector keep expansion open; the IEI One Key Recovery solution handles operating system backup and restore. Memory is on a single 204-pin DDR3L SO-DIMM 1333/1066 MT/s, up to 8 GB with J1900 and N2930, up to 4 GB with N2807.
Available in three configurations: NANO-BT-i1-N29301-R11 (Celeron N2930 quad-core, 1.83 GHz), NANO-BT-i1-N28071-R11 (Celeron N2807 dual-core, 1.58 GHz) and NANO-BT-i1-J19001-R11 (Celeron J1900 quad-core, 2.0 GHz).
At a glance
- Dual independent display LVDS, VGA and HDMI
- Two GbE Intel I210-AT and I211-AT
- IPMI 2.0 with iRIS-1010 module
- 12 VDC power input
- AT/ATX power mode
Technical specifications
| Processor | Intel® Celeron® N2807 on-board SoC (1.58GHz(optional)Intel® Celeron® J1900 on-board SoC (2GHz(optional)Intel® Celeron® N2930 on-board SoC (1.83GHz(optional) |
|---|
| Memory | DDR3L 1333/1066 MT/sSODIMM DDR3L 204-pin 1333/1066 MT/s8 GB (J1900, N2930, E3827, E3826, E3815) or 4 GB (N2807) |
|---|
| SATA ports | 2× SATA :3Gb/s with 5V SATA power connector(no RAID) |
|---|
| Video outputs | Supports dual independent display with LVDS, VGA and HDMI™ · 1 x HDMI™ :up to 1920x1080@60Hz |
|---|
| Keyboard & pointing device | 1× PS/2 |
|---|---|
| Connectors | 1× Internal power connector (2x2 pin) |
| Audio | Description: Realtek ALC662 HD Audio codec · 1 x Front Audio :2x5 pin |
| Ethernet ports | 2× LAN :LAN1: Intel® I210-AT PCIe controller with NCSI support |
| Serial interfaces | 3× Internal RS-232 :2x5 pin, p=2.0 |
| USB ports | 1× External USB 3.2 Gen1x1 |
| Form factor | EPIC |
|---|
| Power input | Support AT/ATX mode |
|---|
| Dimensions | 115 X 165 |
|---|---|
| Weight | 0.35 kg |
| Operating temperature | -20–60 °C-40–85 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NANO-BT-i1-J19001-R11 |
| NANO-BT-i1-N28071-R11 |
| NANO-BT-i1-N29301-R11 |
