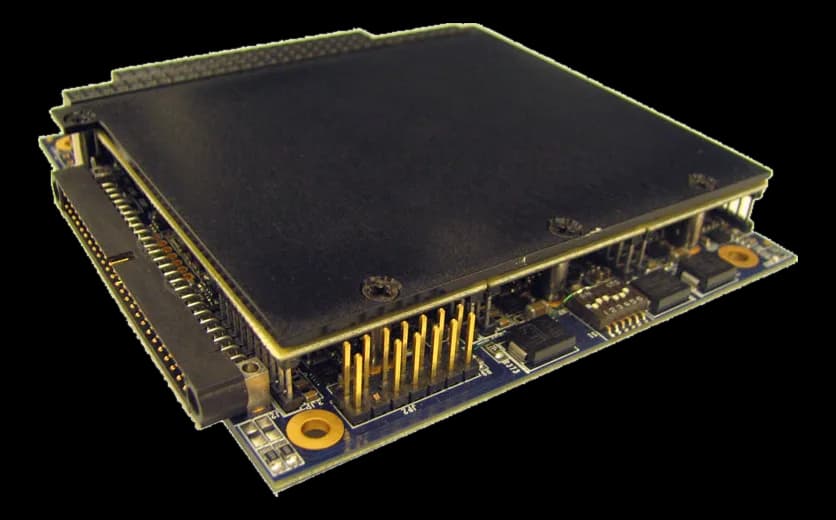

73DS2PC104 module with three isolated digital-to-Synchro/Resolver channels
- Manufacturer
73DS2 is a PC104 form factor module that generates Synchro or Resolver signals from digital data, for test benches and angular sensor simulation.
Three D/S(R) channels are available with isolated output format and a declared drive capability of 1.2 VA per channel; the reference frequency runs from 47 Hz to 10 kHz. The continuous background Built-In-Test detects signal and reference loss, with wraparound reading of the angle actually commanded.
At a glance
- Channels: 3
- Form factor: PC/104
Technical specifications
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
