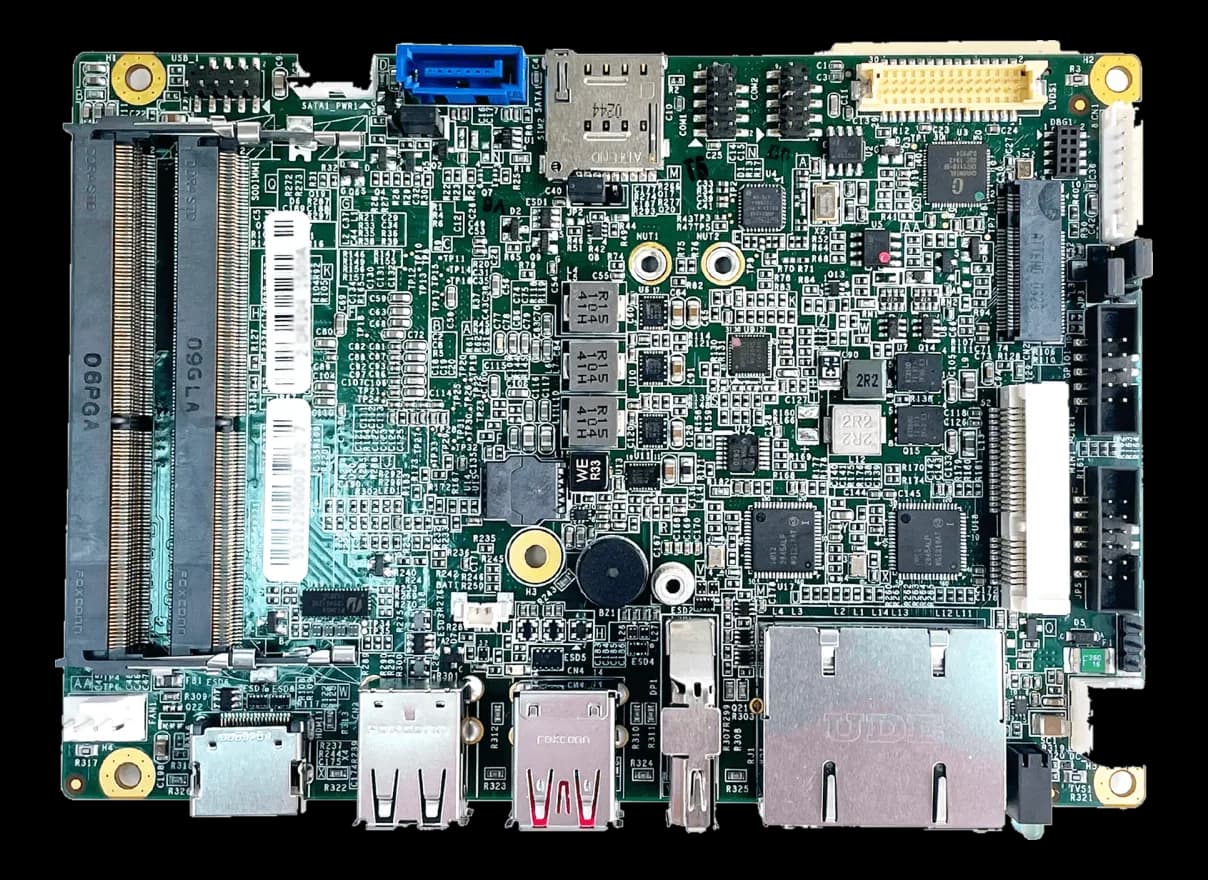

CT-DR101Industrial 3.5" SBC with AMD Ryzen Embedded R1000/V1000 and independent triple display
- Manufacturer
CT-DR101 is an embedded motherboard in 3.5" format, 146 mm x 102 mm, designed for HMI, kiosks and industrial gateways where the available volume is that of the board, not that of a system. Power supply is AT/ATX 12V on an internal 4-pin connector and expansion is handled by a full-size Mini PCIe.
The environmental profile is verified according to IEC60068-2-27 for shock and IEC60068-2-64 for vibration, with a design compliant with MIL-STD-810H Method 516.8 and Method 514.8. On the software side, Linux Kernel 5.x is supported and, as an option, Windows 10.
Available configurations: CT-DR101-V1605B with Ryzen Embedded V1605B and Radeon Vega 8 graphics, CT-DR101-R1606G with Ryzen Embedded R1606G and Radeon Vega 3 graphics.
At a glance
- DDR4 SO-DIMM up to 32 GB, ECC
- Two Intel i210 GbE with PXE
- M.2 B Key with SIM socket
- TPM 2.0 supported
Technical specifications
| Processor | Support AMD Ryzen™ Embedded R1000/V1000 SeriesAMD Ryzen™ Embedded R1606G with Radeon™ Vega 3 Graphics(optional) |
|---|---|
| Graphics | AMD RadeonTM Vega 8 (V1605B)(variant CT-DR101-V1605B)AMD RadeonTM Vega 3 (R1606G)(optional) |
| Memory | 2× SODIMM DDR4 260-pin · Max. up to 32GB (ECC and Non-ECC) |
|---|
| SATA ports | 1x SATA 7-Pin Connector |
|---|
| Video outputs | 3× Independent display for R1000 & V1000 series1× HDMI 2.0b, Support resolution 3840× 2160, 60Hz(optional) |
|---|
| Digital I/O | 2× 4-Bit DIO (4 In / 4 Out) |
|---|---|
| Connectors | 4-pin power connector (internal) |
| Audio | Realtek ALC888S HD Audio Codec |
| Ethernet ports | GbE1: Intel i210 (Support Wake-on-LAN and PXE)GbE2: Intel i210 (Support Wake-on-LAN and PXE) |
| Serial interfaces | 2× COM RS-232/422/485 (internal) |
| USB ports | 2× USB 3.2 Gen 2, 2× USB 2.0 |
| Wireless | 4G/LTE5GBluetooth(optional) |
|---|
| Form factor | 3.5" SBC |
|---|
| Supply voltage | AT/ ATX 12V |
|---|
| Dimensions | 146 mm x 102 mm |
|---|
| Operating temperature | -40–75 °C |
|---|
| Certifications | MIL-STD-810 |
|---|
| Operating systems | LinuxWindows(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
