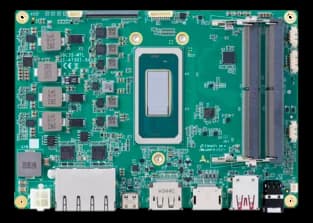

SBC35-ARL3.5" SBC with Intel Core Ultra (Series 2) and integrated NPU
- Manufacturer
- Configurations
- 1 available configurations

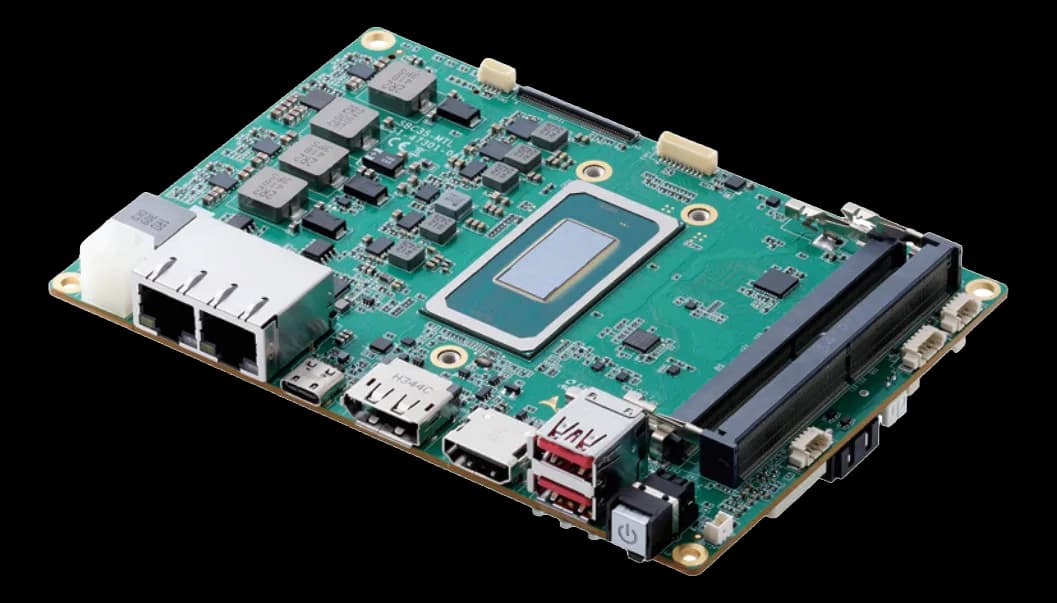

SBC35-ARL is a 3.5" SBC form factor board, 146 x 102 mm, for embedded equipment where footprint is a design constraint: automation, kiosks, HMI, vision systems. Operating system support covers Windows 10 IoT, Windows 11 IoT and Linux.
Expansion lives on three M.2 slots — 2280 M key with PCIe x4, 2230 E key and 3042 B key with SIM holder — alongside the SBC-FM connector for daughter boards and the optional TPM 2.0: you add storage and wireless modules without leaving the board perimeter, not with an additional carrier.
The board is ordered with part number 91-47301-10.
At a glance
- Two Intel I226V 2.5GbE Ethernet ports
- 12–24 V input
- Up to four displays managed
- MIPI-CSI path reserved for camera
- CE and FCC Class B certification
Technical specifications
| Processor | ARL-U · Intel® Core™ Ultra Processor delivers efficient, high-performance computing. |
|---|
| Memory | Up to 96 GB DDR5 5600 MT/s |
|---|
| SATA ports | 1× SATA 6Gb/s ports w/ 5V SATA power |
|---|
| Video outputs | 1x HDMI 2.0 1x DP1.4 eDP x1 (LVDS through RPL driving board), 1x Type-C |
|---|
| Digital I/O | GPIO 8-bit through 30pin header |
|---|---|
| Audio | 1× line-in, 1× line-out, MIC-in through 30pin header |
| Ethernet ports | 2× Intel® I226V, 2.5Gps / 1Gbps/ 100Mbps / 10Mbps |
| Serial interfaces | 2× RS-232/422/485 pin headers |
| USB ports | 2x USB 3.2 Gen 2x1 ports (10Gbps) (rear I/O) 2x USB 2.0 through 30pin header 1x USB 2.0 via headers |
| Form factor | 3.5" SBC |
|---|
| Power input | 12V-24V |
|---|
| Dimensions | 5.75" x 4" (146mm x 102mm) |
|---|
| Operating temperature | 0–60 °C |
|---|
| Certifications | FCCCE |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| 91-47301-10 |
