NANO-BTW2EPIC SBC with on-board Intel Atom 22nm SoC and independent dual display
- Manufacturer
- Configurations
- 2 available configurations

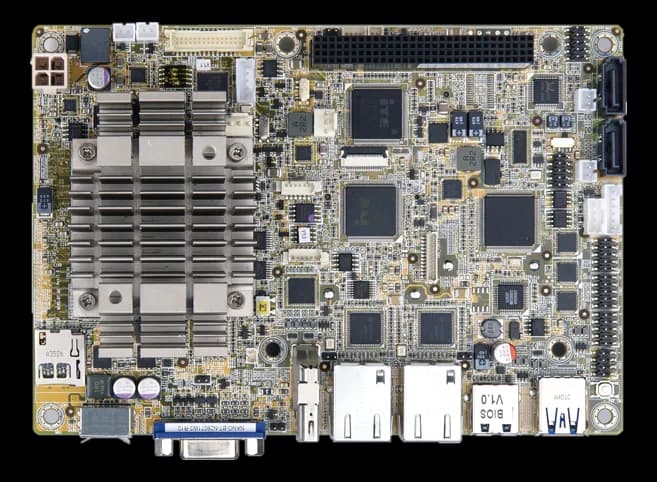

NANO-BTW2 is an embedded board in EPIC form factor designed for compact industrial machines and systems: the SoC is soldered on board, without socket, in three variants — Atom E3827 dual-core at 1.75 GHz, E3826 dual-core at 1.46 GHz, E3815 single-core at 1.46 GHz.
On the expansion side the board features a full-size PCIe Mini slot with mSATA co-lay on the SATA 2 port and a PC/104 connector on PCI signal; the passive heat sink is included in the packing list, together with the RS-232, SATA and power cables.
Available configurations: NANO-BT-J19001-ECO-R11, with Celeron J1900 quad-core 2.0 GHz and ECO packing, and NANO-BT-E38451W2-R11, with Atom E3845 quad-core 1.91 GHz and dual PCIe Mini.
At a glance
- Independent dual display LVDS, VGA and HDMI
- DDR3L SO-DIMM up to 8 GB
- IPMI 2.0 with iRIS-1010 module
- IEI One Key Recovery for OS backup
- Dual Intel I210-IT LAN
Technical specifications
| Processor | Intel® Atom™ E3826 on-board SoC (1.46GHz(optional)Intel® Atom™ E3815 on-board SoC (1.46GHz(optional)Intel® Atom™ E3827 on-board SoC (1.75GHz(optional) |
|---|
| Memory | Up to 8GB SODIMM DDR3L |
|---|
| SATA ports | 2× SATA :3Gb/s with 5V SATA power connector(no RAID) |
|---|
| Video outputs | Supports dual independent display with LVDS, VGA and HDMI |
|---|
| Keyboard & pointing device | 1× PS/2 |
|---|---|
| Connectors | 1× Internal power connector (2x2 pin) |
| Audio | Description: Realtek ALC662 HD Audio codec · 1 x Front Audio :2x5 pin |
| Ethernet ports | 2× LAN :LAN1: Intel® I210-IT PCIe controller with NCSI support<br>LAN2: Intel® I210-IT PCIe controller |
| Serial interfaces | 3× Internal RS-232 :2x5 pin, p=2.0 |
| USB ports | 1 x External USB 2.0 |
| Form factor | EPIC |
|---|
| Power input | 12V@1.52A |
|---|
| Dimensions | 115 X 165 |
|---|---|
| Weight | 0.35 kg |
| Operating temperature | -40–85 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NANO-BT-E38451W2-R11 |
| NANO-BT-J19001-ECO-R11 |
