73SD4Six isolated channel Synchro/Resolver-to-digital converter
- Manufacturer

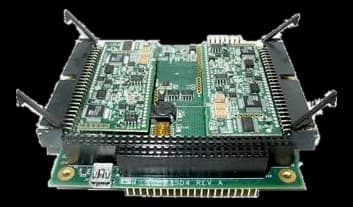

73SD4 is a six isolated channel Synchro/Resolver-to-digital conversion module, used to read angular sensors in test benches and motion control systems.
Each channel works as a tracking converter and the velocity ratios are programmable from 1:1 to 255:1. Digital velocity output, angle change alarm and automatic phase correction are available, together with encoder outputs and Hall effect commutation as an option.
At a glance
- Form factor: PC/104
Technical specifications
| Form factor | PC/104 |
|---|
| Driver & SDK | Software Support Kit (SSK) and drivers are available |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
