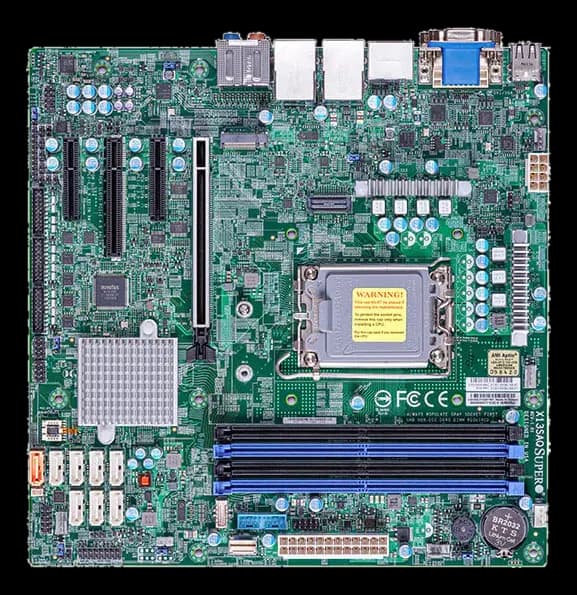

MBD-X13SAQIndustrial microATX motherboard with LGA1700 socket and DDR5 memory
- Manufacturer
- Configurations
- 2 available configurations
The board supports Intel Core i3/i5/i7/i9 processors of the 12th, 13th and 14th generation and the Core 3/5/7 Series 2, with a maximum of 24 cores and TDP up to 125 W; memory runs on four DIMM slots at 4400 MHz.
Expansion offers one PCIe 5.0 x16 slot flanked by PCIe 4.0 and 3.0 slots, a SlimSAS PCIe 4.0 x4 connector and an M.2 PCIe 4.0 x4 slot for NVMe drives. Networking relies on two 2.5 Gigabit LAN ports with Intel i225LM controllers, while the video section drives four independent displays over VGA, DisplayPort, HDMI and DVI-D.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 12th gen (Alder Lake)
- CPU TDP: Up to 125W TDP (**bios v5.x or above) W
- TPM: TPM 2.0
- RAM type: DDR5
Technical specifications
| Chipset | Q670E |
|---|---|
| CPU class | Intel Core i3/i5/i7/i9 |
| BIOS | AMI UEFI |
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake)14th gen (Raptor Lake-R) |
| CPU TDP | Up to 125W TDP (**bios v5.x or above) W |
| TPM | TPM 2.0 |
| RAM type | DDR5 |
|---|---|
| Maximum RAM | 128 GB |
| Memory | Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots |
| Storage | 8 SATA (6Gbps) via Intel Q670EM.2 NGFF connector |
|---|
| Video outputs | 1 HDMI 2.0b port(s)1 DVI - D port(s)1 VGA port(s) 1 HDMI 2.0b port(s) 1 DVI - D port(s) 1 Display Port port(s)1 VGA port(s)4 Independent Displays (1 VGA port, 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port)(DisplayPort) |
|---|
| USB ports | 2 USB 3.2 Gen2 Type-A port(s) (Rear)Dual USB3.1 Type A Cable with Bracket2 USB 3.2 Gen2x2 Type-C port(s) (Rear)2 USB 2 port(s) (Header)2 USB 3.2 Gen1 port(s) (Header)2 USB 3.2 Gen2 port(s) (Header)2 USB 2 Type-A port(s) (Rear) |
|---|---|
| Ethernet ports | Dual LAN with Intel® Ethernet i225LM |
| Form factor | microATX |
|---|
| Dimensions | 243.8 × 243.8 mm |
|---|
| Ethernet ports | 2.5 GbE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
