Industrial Server Motherboards

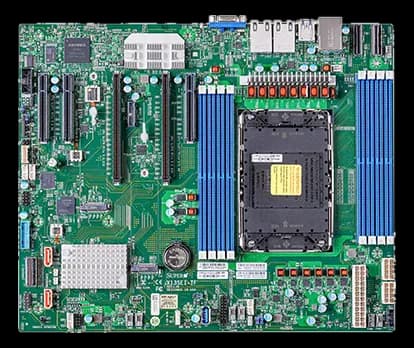

MBD-X13SEI-TFATX C741 motherboard with DDR5 ECC up to 2048 GB
- Manufacturer
- Configurations
- 2 available configurations
MBD-X13SEI-TF is a server motherboard in ATX form factor built around memory capacity: DDR5 with error correction reaches 2048 GB, the threshold that counts in in-memory databases and in dense virtualization.
The LGA4677 socket takes Intel Xeon processors with TDP up to 350 W, while graphics and the VGA port go through the Aspeed AST2600 BMC, the same controller that exposes remote management. The declared environmental conditions are humidity from 8 to 80% and storage from -30 to 60 °C.
At a glance
- CPU generation: 5th gen Scalable (Emerald Rapids)
- CPU TDP: 350 W
- CPU cores: 60–64
- CPU class: Intel Xeon
- CPU socket: LGA4677
Technical specifications
| BIOS | 256 Mb AMI BIOS® SPI Flash BIOSAMI UEFIACPI 6.0, Plug and Play (PnP), riser card auto detection support, and SMBIOS 3.0 or later |
|---|---|
| CPU generation | 5th gen Scalable (Emerald Rapids)4ª/5ª gen Intel Xeon Scalable4th gen Scalable (Sapphire Rapids) |
| CPU TDP | 350 W |
| TPM | TPM 2.0(header) |
| CPU cores | 60–64 |
| CPU class | Intel Xeon |
| Chipset | C741 |
| Graphics | Graphics controller via Aspeed AST2600 BMC |
| CPU socket | LGA4677 |
| RAM type | DDR5 |
|---|---|
| ECC support | Yes |
| Maximum RAM | 2 TB GB |
| Memory | Memory speeds of up to 5600 MT/s in eight memory slots (5th Generation Intel Xeon)Up to 2 TB of 3DS RDIMM ECC DDR5 memoryMemory speeds of up to 4800 MT/s in eight memory slots (4th Generation Intel Xeon) |
| Storage | ACPI power management Chassis intrusion detection Control of power-on for recovery from AC power loss M.2 NGFF connector Node manager suppor10 SATA (6Gbps) via Intel® C741 |
|---|
| Video outputs | 1 Aspeed AST2600 BMC port(s) 1 VGA D-Sub Connector port(s) |
|---|
| USB ports | 2 USB 2.0 port(s) (rear) 2 USB 3.2 Gen1 port(s) (Rear) 1 USB 3.2 Gen1 Type-A port(s) 1 USB 3.2 Gen1 port(s) (Header)Front Accessible USB 3.2 Gen 1 Header |
|---|---|
| Ethernet ports | Intel Dual 10 GbE (X13SEI-TF, X550) LAN ports2 RJ45 10 GbE LAN port(s) 1 RJ45 1 GbE Dedicated IPMI LAN port(s)Dual LAN with 10GBase-T with Intel® X550 |
| Form factor | ATX |
|---|
| Expansion | Two M.2 PCIe 5.0 x4 from CPU Slots, in 22110/2280 |
|---|
| Storage temperature | -30–60 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible systems
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MBD-X13SEI-TF-B |
| MBD-X13SEI-TF-O |
