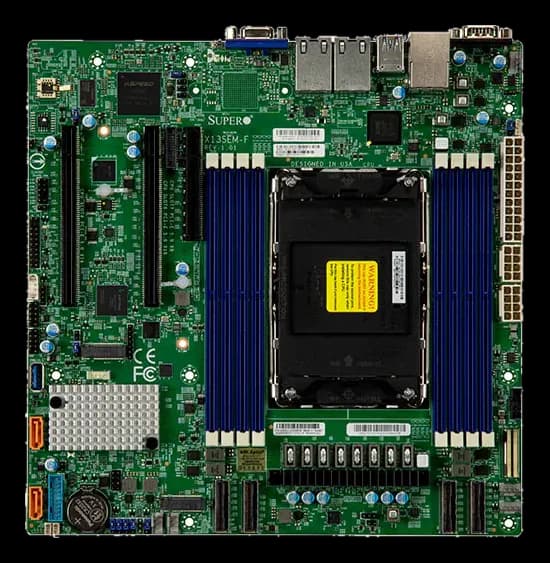

MBD-X13SEM-FServer motherboard with Intel C741 chipset and LGA4677 socket
- Manufacturer
- Configurations
- 2 available configurations
MBD-X13SEM-F is a server motherboard in microATX form factor: it takes Intel Xeon processors, 4th Gen Scalable (Sapphire Rapids) and 5th Gen Scalable (Emerald Rapids), with TDP up to 350 W. Memory reaches 2 TB, with error correction.
Expansion offers PCIe x16 and PCIe x8 slots. Networking reaches Gigabit. Video outputs cover VGA. Storage covers M.2 NVMe and SATA. Operating range is declared between -5 and 55 °C.
At a glance
- CPU generation: 5th gen Scalable (Emerald Rapids)
- Processor: Single Socket E (LGA-4677); 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors; *BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors
- CPU TDP: 350 W
- TPM: TPM 2.0
- CPU cores: 64–64
Technical specifications
| BIOS | AMI UEFI · ACPI 6.4; SMBIOS 3.5; UEFI 2.8 or above |
|---|---|
| CPU generation | 5th gen Scalable (Emerald Rapids)4th gen Scalable (Sapphire Rapids) |
| Processor | Single Socket E (LGA-4677); 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors; *BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors |
| CPU TDP | 350 W |
| TPM | TPM 2.0 |
| CPU cores | 64–64 |
| CPU socket count | 1–1 |
| CPU class | Intel Xeon |
| Chipset | C741 |
| CPU socket | LGA4677 |
| RAM type | DDR5 |
|---|---|
| ECC support | sì |
| Maximum RAM | 2048–2048 GB |
| Memory | Slot Count: 8 DIMM Slots/8 Channels; Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM; Max Memory (1DPC): Up to 2TB 4800MT/s ECC DDR5 3DS RDIMM · RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB; 3DS RDIMM:128GB, 256GB · 1.1V · Corrects single-bit errors; Detects double-bit errors (using ECC memory) |
| Storage | 10 SATA (6Gbps) via Intel® C741; RAID 0/1/5/10 support · 2 M.2 PCIe 4.0 x2 slots (M-key 2280/22110) |
|---|
| Video outputs | 1 Aspeed AST2600 BMC port(s); 1 VGA D-Sub Connector port(s) |
|---|
| Other I/O | 2 SATA DOM (Disk on Module) port(s) with power connector support · 5x 4-pin fan headers (up to 5 fans); 5 fans with tachometer status monitoring; Fan speed control; Overheat LED indication |
|---|---|
| USB ports | 2 USB 2.0 port(s) (rear); 4 USB 2.0 port(s) (header); 2 USB 3.2 Gen1 port(s) (Header); 2 USB 3.2 Gen1 port(s) (Rear); 1 USB 3.2 Gen1 Type-A port(s) |
| Ethernet ports | Dual LAN with 1GbE with Intel® I350 · 2 RJ45 1 GbE LAN port(s); 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| Serial interfaces | 1 COM port(s) (rear) |
| Form factor | microATX |
|---|
| Expansion | 2 PCIe 5.0 x16 slots; 1 PCIe 5.0 x8 slot; 4 PCIe 5.0 x8 via MCIO Connector slots |
|---|
| Dimensions | 243.8 × 243.8 |
|---|---|
| Other features | ASPEED AST2600 BMC · SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Power Manager (SPM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!; Plug-ins for 3rd Party Software; IPMI Utilities · +12V,+3.3V,+5V,+5V standby,5 -fan status,Chassis intrusion header,Chipset voltage,Monitors CPU voltages,Supports system management utility,System level control,VBAT · CPU/system overheat LED; UID/remote UID LED · ACPI power management; Chassis intrusion detection; Control of power-on for recovery from AC power loss; M.2 NGFF connector; Node manager support; UID; WOL |
| Storage temperature | -30–60 °C |
|---|---|
| Operating temperature | −5~55 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
