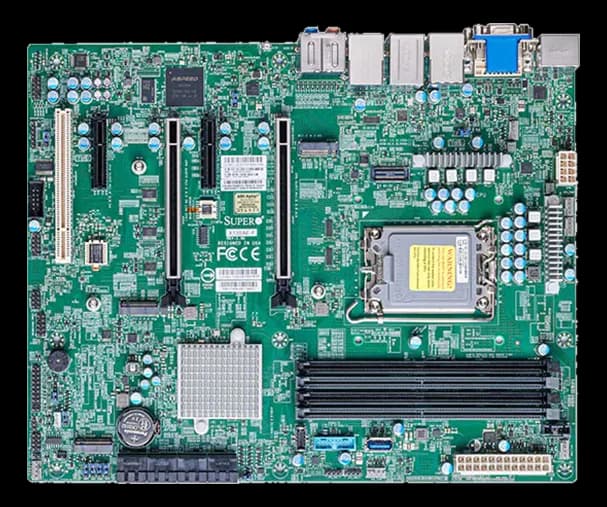

MBD-X13SAE-FATX W680 motherboard with DDR5 ECC up to 192 GB
- Manufacturer
- Configurations
- 2 available configurations
MBD-X13SAE-F is a motherboard in ATX form factor for workstations: the Intel W680 chipset joins the desktop processor socket to memory with error correction, a combination that serves whoever processes technical data and cannot afford silent errors.
The LGA1700 socket takes Intel Core i9, i7, i5 and i3 processors with TDP up to 150 W, while DDR5 ECC memory reaches 192 GB. A serial port remains available for instrumentation or for the service console.
The configurations of the family cover Intel processors of the 12th, 13th and 14th generation.
At a glance
- CPU generation: 12th gen (Alder Lake)
- CPU TDP: up to 150W W
- CPU class: Intel Core i3/i5/i7/i9
- CPU socket: LGA1700
- RAM type: DDR5
Technical specifications
| BIOS | ACPI 6.0 Plug and Play (PnP) SMBIOS 3.0 or later BIOS rescue hot keys Riser card auto-detection support |
|---|---|
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake)14th gen (Raptor Lake-R) |
| CPU TDP | up to 150W W |
| TPM | TPM 2.0(header) |
| CPU class | Intel Core i3/i5/i7/i9 |
| Chipset | W680 |
| CPU socket | LGA1700 |
| RAM type | DDR5 |
|---|---|
| ECC support | Yes |
| Maximum RAM | 192 GB |
| Storage | Eight SATA 3.0 ports at 6Gb/s (support RAID 0, 1, 5, and 10 with up to six SATA 3.0 storage devices) |
|---|
| Video outputs | 1 Display Port port(s) 1 DVI - D port(s) 1 HDMI 2.0b port(s) 1 VGA port(s)One HDMI 2.0b connection on the rear I/O panelOne DisplayPort 1.4a connection on the rear I/O panel |
|---|
| USB ports | Two USB 2.0 ports on the rear I/O panel (USB0/1, Type-A)One USB 3.2 Gen. 2x2 port on the rear I/O panel (USB10, 20Gb, Type-C)Three USB 3.2 Gen. 2 ports on the rear I/O panel (USB7/8/9, 10Gb, Type-A)One front accessible USB 2.0 header with two USB connections (USB2/3)Back Panel USB 3.2 Gen. 2x2 Ports (20Gb, Type-C) |
|---|---|
| Audio | ALC 888S HD Audio |
| Ethernet ports | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) 1 RJ45 1 GbE LAN port(s) 1 RJ45 2.5 GbE LAN port(s)RJ45 1GbE LAN Port |
| Serial interfaces | One front accessible serial port header (COM1) |
| Form factor | ATX |
|---|
| Expansion | One PCI slot (PCI SLOT1) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
