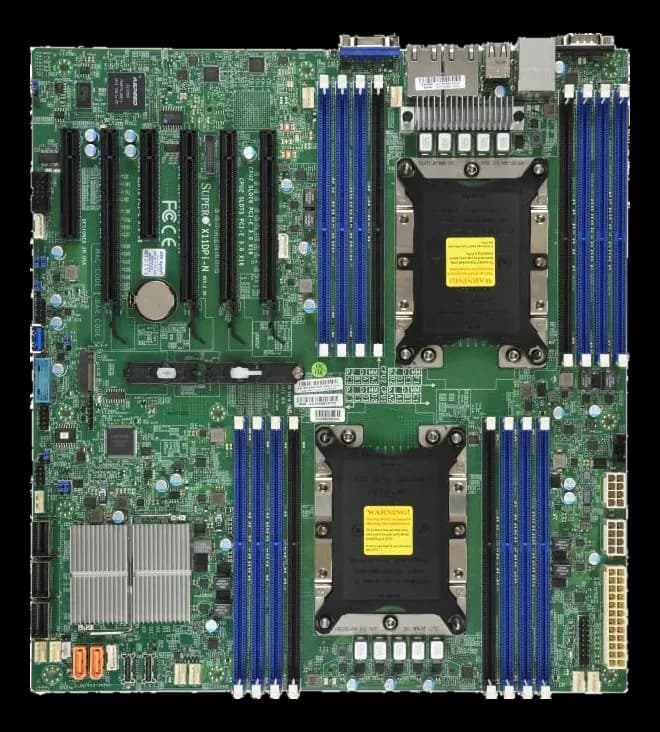

MBD-X11DPi-NTServer motherboard with Intel C622 chipset and LGA3647 socket
- Manufacturer
- Configurations
- 2 available configurations
MBD-X11DPi-NT is a server motherboard in EATX form factor: it takes Intel Xeon processors, 1st Gen Scalable (Skylake-SP) and 2nd Gen Scalable (Cascade Lake), with TDP up to 205 W. Memory reaches 4 TB, with error correction.
Expansion offers PCIe x16 and PCIe x8 slots. Networking reaches 10 Gigabit. Video outputs cover VGA. Storage covers M.2 NVMe and SATA. Operating range is declared between 10 and 35 °C.
At a glance
- CPU generation: 2nd gen Scalable (Cascade Lake)
- Processor: 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors; Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
- CPU TDP: 205 W
- TPM: TPM 2.0
- CPU cores: 28–28
Technical specifications
| BIOS | AMI UEFI |
|---|---|
| CPU generation | 2nd gen Scalable (Cascade Lake)1st gen Scalable (Skylake-SP) |
| Processor | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors; Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s |
| CPU TDP | 205 W |
| TPM | TPM 2.0 |
| CPU cores | 28–28 |
| CPU socket count | 2–2 |
| CPU class | Intel Xeon |
| Chipset | C622 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| CPU socket | LGA3647 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 4096–4096 GB |
| Memory | 16 DIMM slots; Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only) · 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) · LRDIMM: 128GB; RDIMM: 64GB · 1.2V · Corrects single-bit errors; Detects double-bit errors (using ECC memory) |
| Storage | Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · 14 SATA3 (6Gbps) port(s) · M.2 Interface: PCIe 3.0 x4; Form Factor: 22110, 2280, 2260; Key: M-Key |
|---|
| Video outputs | 1 VGA port(s) |
|---|
| Other I/O | 2 Super DOM (Disk on Module) ports · 8x 4-pin fan headers (up to 8 fans); PWM fan speed control |
|---|---|
| Ethernet ports | Dual LAN with 10GBase-T with Intel® X722 + X557 |
| Serial interfaces | 1 COM; 1 COM |
| Form factor | E-ATX |
|---|
| Expansion | 4 PCIe 3.0 x16, 2 PCIe 3.0 x8 |
|---|
| Dimensions | 330.2 × 304.8 |
|---|---|
| Other features | ASPEED AST2500 · SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog · Monitors CPU voltages, 3.3V standby, +5V standby, +5V, +3.3V, +12V · UID/remote UID LED; Power LED; BMC/IPMI Heartbeat LED; CPU/system overheat LED · UID, RoHS, Node manager support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX power connector, ACPI power management, SDDC, NCSI header |
| Storage temperature | -40–70 °C |
|---|---|
| Operating temperature | 10~35 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
