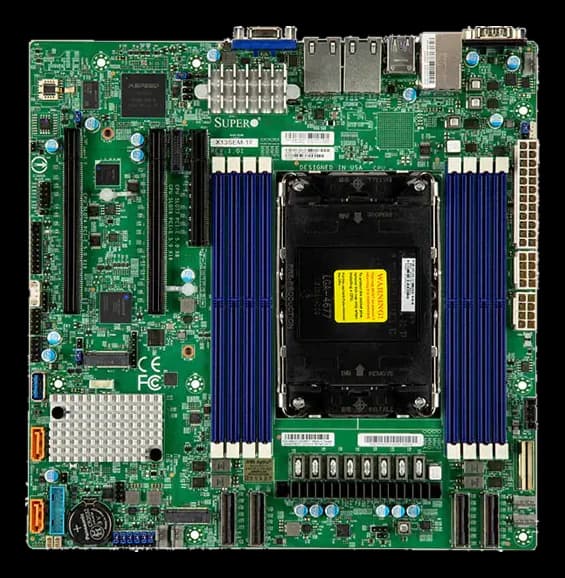

MBD-X13SEM-TFServer motherboard with Intel C741 chipset and LGA4677 socket
- Manufacturer
- Configurations
- 2 available configurations
MBD-X13SEM-TF is a server motherboard in microATX form factor: it takes Intel Xeon processors, 4th Gen Scalable (Sapphire Rapids) and 5th Gen Scalable (Emerald Rapids), with TDP up to 350 W. Memory reaches 2 TB, with error correction.
Expansion offers PCIe x16 and PCIe x8 slots. Networking combines 10 Gigabit and Gigabit ports. Video outputs cover VGA. Storage covers M.2 NVMe and SATA. Operating range is declared between -5 and 55 °C.
At a glance
- CPU generation: 5th gen Scalable (Emerald Rapids)
- Processor: Single Socket E (LGA-4677); 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors; *BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors
- CPU TDP: 350 W
- TPM: TPM 2.0
- CPU cores: 64–64
Technical specifications
| BIOS | AMI UEFI · ACPI 6.4; SMBIOS 3.5; UEFI 2.8 or above |
|---|---|
| CPU generation | 5th gen Scalable (Emerald Rapids)4th gen Scalable (Sapphire Rapids) |
| Processor | Single Socket E (LGA-4677); 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors; *BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors |
| CPU TDP | 350 W |
| TPM | TPM 2.0 |
| CPU cores | 64–64 |
| CPU socket count | 1–1 |
| CPU class | Intel Xeon |
| Chipset | C741 |
| CPU socket | LGA4677 |
| RAM type | DDR5 |
|---|---|
| ECC support | sì |
| Maximum RAM | 2048–2048 GB |
| Memory | Slot Count: 8 DIMM Slots/8 Channels; Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM; Max Memory (1DPC): Up to 2TB 4800MT/s ECC DDR5 3DS RDIMM · RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB; 3DS RDIMM:128GB, 256GB · 1.1V · Corrects single-bit errors; Detects double-bit errors (using ECC memory) |
| Storage | 10 SATA (6Gbps) via Intel® C741; RAID 0/1/5/10 support · 2 M.2 PCIe 4.0 x2 slots (M-key 2280/22110) |
|---|
| Video outputs | 1 Aspeed AST2600 BMC port(s); 1 VGA D-Sub Connector port(s) |
|---|
| Other I/O | 2 SATA DOM (Disk on Module) port(s) with power connector support · 5x 4-pin fan headers (up to 5 fans); 5 fans with tachometer status monitoring; Fan speed control; Overheat LED indication |
|---|---|
| USB ports | 2 USB 2.0 port(s) (rear); 4 USB 2.0 port(s) (header); 2 USB 3.2 Gen1 port(s) (Header); 2 USB 3.2 Gen1 port(s) (Rear); 1 USB 3.2 Gen1 Type-A port(s) |
| Ethernet ports | Dual LAN with 10GBase-T with Intel® X550 · 2 RJ45 10 GbE LAN port(s); 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| Serial interfaces | 1 COM port(s) (rear) |
| Form factor | microATX |
|---|
| Expansion | 2 PCIe 5.0 x16 slots; 1 PCIe 5.0 x8 slot; 4 PCIe 5.0 x8 via MCIO Connector slots |
|---|
| Dimensions | 243.8 × 243.8 |
|---|---|
| Other features | ASPEED AST2600 BMC · SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Power Manager (SPM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!; Plug-ins for 3rd Party Software; IPMI Utilities · +12V,+3.3V,+5V,+5V standby,5 -fan status,Chassis intrusion header,Chipset voltage,Monitors CPU voltages,Supports system management utility,System level control,VBAT · CPU/system overheat LED; UID/remote UID LED · ACPI power management; Chassis intrusion detection; Control of power-on for recovery from AC power loss; M.2 NGFF connector; Node manager support; UID; WOL |
| Storage temperature | -30–60 °C |
|---|---|
| Operating temperature | −5~55 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
